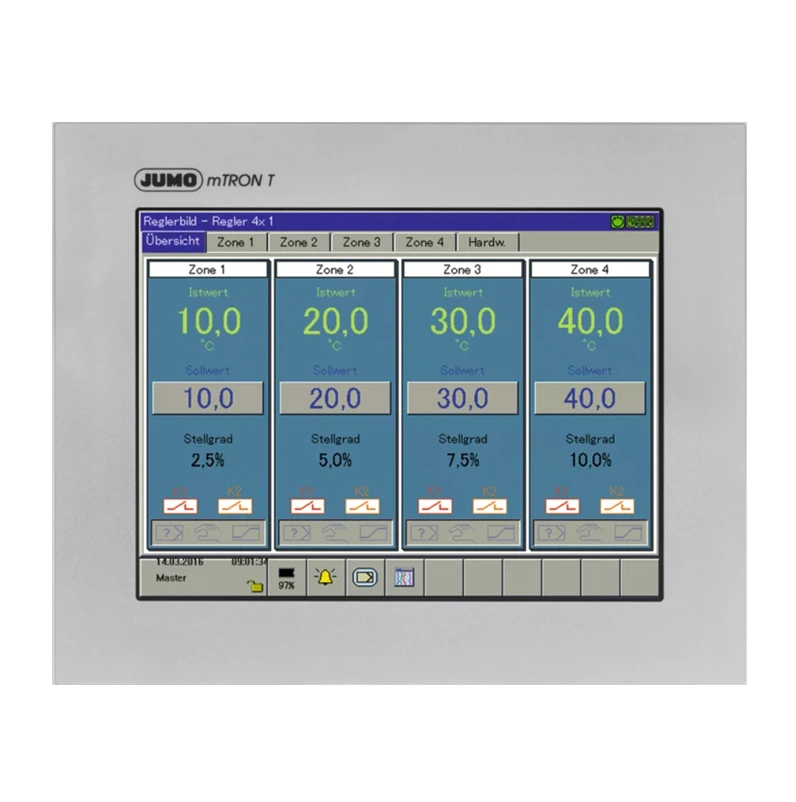

Basic type: 705060
Order JUMO mTRON T directly online from the leading manufacturer of measuring and sensor technology.
- 2 serial interfaces
- 2 RJ45 system bus connections
- IP67 protection on front
- Predefined screen masks for the controller
- program generator, and recording function
- customer-specific process screens
- user management
- configuration access to the overall system
- recording function (option)
- integrated web server
| General technical data | |
|---|---|
| Operation | 21.3-cm (8.4″) TFT touchscreen with a resolution of 640 × 480 pixels and 256 colors |
| Interfaces | Ethernet, 1 USB device, 2 USB hots, 2 RJ45 system bus connections (1 × Bus In, 1 × Bus Out), 2 serial interfaces (option) as RS232 or RS422/485 for barcode scanner and Modbus RTU master/slave |
| Special features | Predefined screen masks for the controller, program generator, and recording function, customer-specific process screens, user management, configuration access to the overall system, recording function (option), integrated web server |
| Approvals | UL, DNV |
| Housing | Robust metal case |
| Protection type | IP67 (front side), IP20 (rear side) |
| Ambient temperature | -20 to +55 °C |
| Voltage supply | DC 24 V +25/-20 % SELV |
| Dimensions (W × H × D) | 235 mm x 195 mm x 58 mm (without connection elements) |
