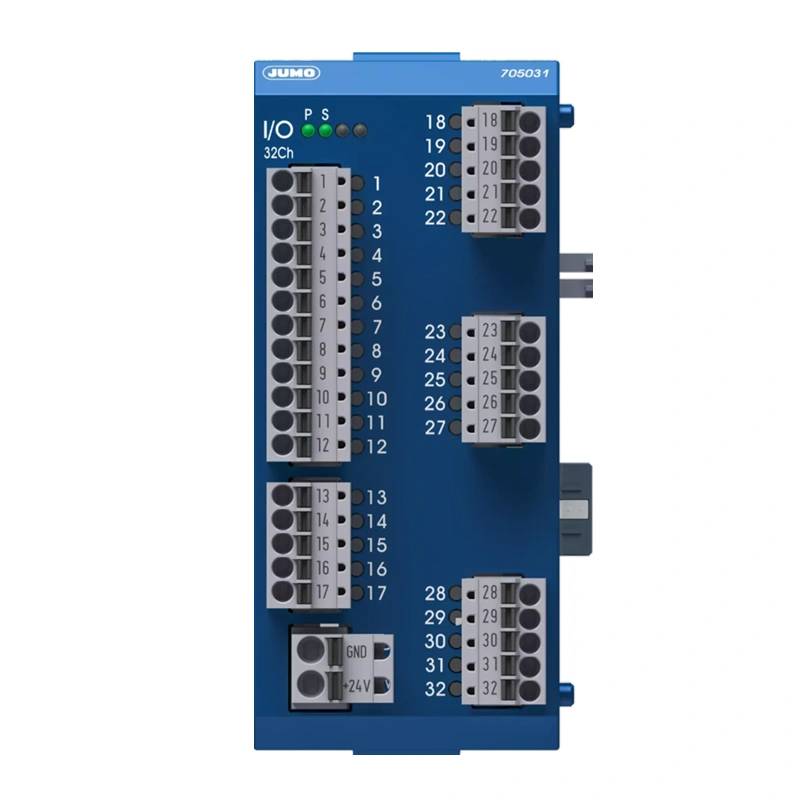

Basic type: 705031
Order Digital input/output module 32-channel directly online from the leading manufacturer of measuring and sensor technology.
- 32 channels, thereof 17 digital outputs
- up to 15 additional inputs or outputs
- Signals: DC 0/24 V; Output: max. 500 mA
| General technical data | |
|---|---|
| Number of channels | 32 |
| Measurement inputs | up to 15 digital inputs DC 24 V (optional) |
| Outputs | 17 fixed and optionally up to 15 additional digital outputs DC 24 V, max. 500 mA |
| Special features | 3 optional expansion slots for 5 digital inputs or outputs each, switching statuses are visualized with LEDs, external voltage supply for digital inputs/outputs via terminal on the front, automatic configuration after replacement of the module insert (Plug and Play), connection of inputs on the front, removable terminal strips with PUSH IN technology, fast wiring of operating voltage and system bus provided by simple module connection principle |
| Connection | Removable terminal strips with PUSH IN technology on the front |
| Voltage supply | C 24 V +25/-20 %, external voltage supply for outputs on the front panel: DC 24 V +25/-20 % SELV |
| Housing | Plastic housing for DIN-rail mounting in the control cabinet |
| Protection type | IP20 |
| Ambient temperature range | -20 to +55 °C |
| Dimensions (W × H × D) | 45 mm × 103.6 mm × 101.5 mm (without connection elements) |
