Basic type: 705065
Order JUMO mTRON T directly online from the leading manufacturer of measuring and sensor technology.
- Ethernet interface

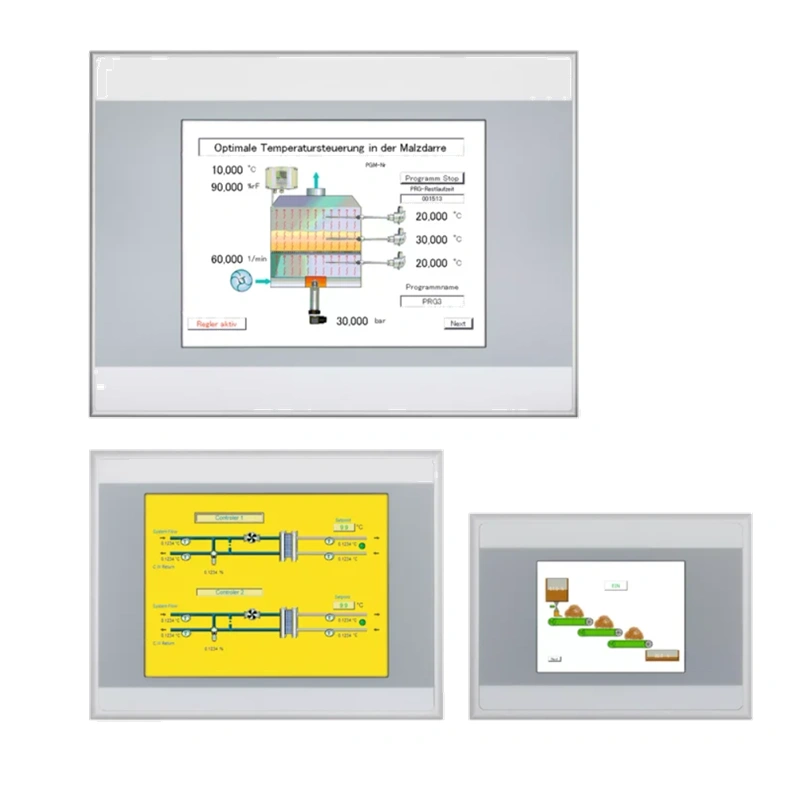

- 3.5″, 5.7″, and 10.4″ TFT color screens
- IP65 protection on front
| General technical data | |
|---|---|
| Operation | TFT color screen (3.5″, 5.7″, and 10.4″, at least 64k colors) with resistive/capacitive touch technology |
| Housing | Metal or plastic |
| Protection type | IP67 (front side), IP20 (rear side) |
| Ambient temperature | -20 to +55 °C |
| Voltage supply | DC 24 V +25/-20 % SELV |
| Interfaces | Ethernet (RJ45) for connection to the system |
| Special features | Up to 4 operating panels per central processing unit (PLC option required), operation of the system via specific process screens, direct access to the PLC variables |
| Screen size | 8.9 cm (3.5″), 14.5 cm (5.7″), and 26.4 cm (10.4″) |
| Screen resolutions | 320 × 240 pixels and 640 × 480 pixels |
