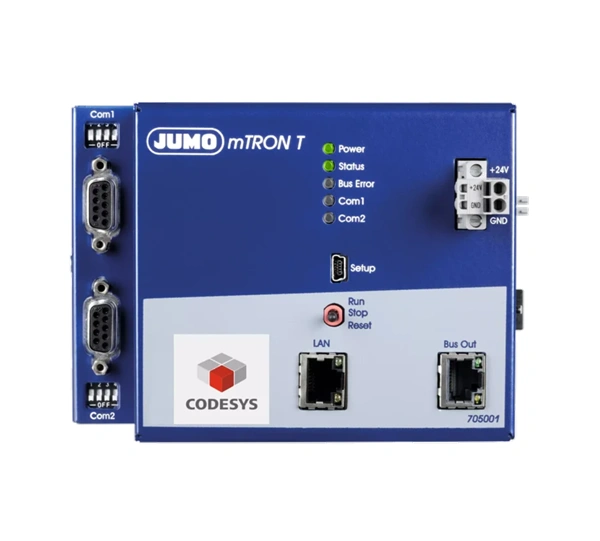

Central processing unit
The central processing unit contains the process map of the application and manages the configuration and parameter data of the overall system. 9 program generators and extensive limit value monitoring functions are available for individual control tasks.
| General technical data | |
|---|---|
| Interfaces | USB device, Ethernet with integrated web server, RJ45 system bus (Bus Out), 2 fieldbuses (optional) |
| Special features | Process mapping for up to 30 input and output modules, integrated web server, 64 limit value monitoring functions, PLC according to IEC 61131-3 (CODESYS V3.5), OPC server (OPC-DA, in connection with PLC CODESYS V3.5), 9 program generators, math and logic module, Plug and Play when replacing the input and output modules, battery-buffered RAM, real-time clock, supply of operating voltage, fast wiring of operating voltage and system bus by simply plugging together the modules |
| Housing | Robust metal case for DIN-rail mounting in the control cabinet |
| Approvals | UL, DNV |
| Ambient temperature | -20 to +55 °C |
| Dimensions (W × H × D) | 135 mm × 101 mm × 67.1 mm (without connection elements) |
| Protection type | IP20, according to DIN EN 60529 |
| Current consumption | Max. 350 mA (at DC 19.2 V) current consumption of modules installed in rows |
