Basic type: 705002
Order JUMO variTRON 500 directly online from the leading manufacturer of measuring and sensor technology.

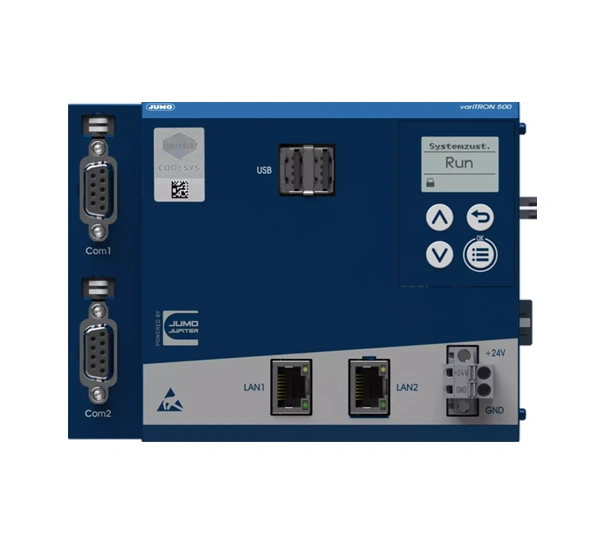

Central processing unit for an automation system
JUMO variTRON 500 is based on the modular platform JUMO JUPITER. The central processing unit along with the tried-and-tested input and output modules (incl. controller module) of the measuring, control, and automation system JUMO mTRON T form an overall system and provide a PLC (CODESYS V3.5).
- High speed performance
- flexible operating philosophy
- many levels of freedom in software and hardware
- state-of-the-art communication interfaces (e.g. OPC UA and MQTT)
- easy adaptation of the hardware inputs and outputs
- easy integration of new software functions via CODESYS PLC
- support of a multi-system principle, integrated JUMO web diagnosis
- provision of function and visualization libraries
- optional recorder app for process data acquisition and evaluation
| General technical data | |
|---|---|
| Interfaces | 2 USB host, 1 Ethernet, system bus, optional: 1 Ethernet, 2 PROFINET, 2 RS232/RS485 |
| Operation | 4 keys and LCD display, monochrome, 96 × 64 pixels (8 lines) |
| Option | PLC according to IEC 61131-3 (CODESYS V3.5), OPC UA server (in combination with PLC), 9 program generators (in combination with PLC, from system version xx) |
| Hardware | JUMO JUPITER platform with 800 MHz quad-core processor, battery-buffered RAM |
| Modules | More than 30 intelligent connection modules, panels in various formats (portrait or landscape, 4:3 or 16:9) |
| Control loops | more than 120 |
| Connection possibilities | JUMO digiLine sensors for liquid analysis, thyristor power controller (via EtherCAT) |
