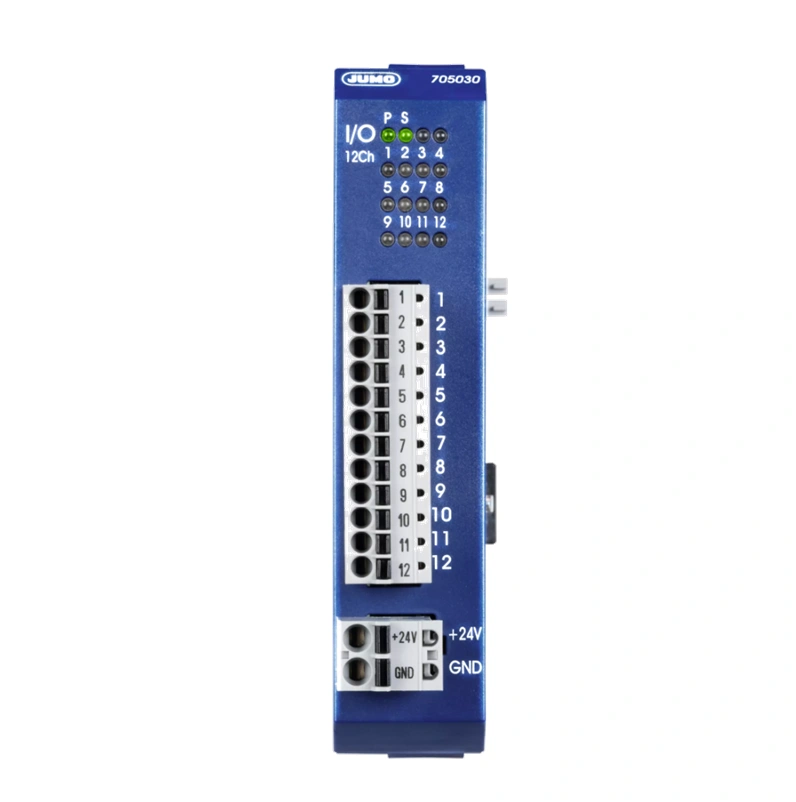

Basic type: 705030
Order JUMO mTRON T directly online from the leading manufacturer of measuring and sensor technology.
- 12 digital inputs or outputs
- Input signal: DC 0/24 V
- Output signal: DC 0/24 V; max. 500 mA
| General technical data | |
|---|---|
| Measurement inputs | 12 channels that can be configured individually as DC 24 V digital input or as DC 24 V digital output (max. 500 mA) |
| Special features | 12 digital, user configurable inputs or outputs, switching statuses are visualized with LEDs, external voltage supply for digital inputs/outputs via terminal on the front, automatic configuration after replacement of the module insert (Plug and Play), connection of inputs on the front, removable terminal strips with PUSH IN technology, fast wiring of operating voltage and system bus provided by simple module connection principle |
| Connection | Removable terminal strips with PUSH IN technology on the front |
| Voltage supply | DC 24 V +25/-20 %, external voltage supply for outputs on the front panel: DC 24 V +25/-20 % SELV |
| Housing | Plastic housing for DIN-rail mounting in the control cabinet |
| Protection type | IP20 |
| Ambient temperature range | -20 to +55 °C |
| Dimensions (W × H × D) | 22.5 mm × 103.6 mm × 101.5 mm (without connection elements) |
