Basic type: 705040
Order JUMO mTRON T directly online from the leading manufacturer of measuring and sensor technology.
- 3 system bus connections
- Galvanically isolated interfaces
- Voltage supply output
| General technical data | |
|---|---|

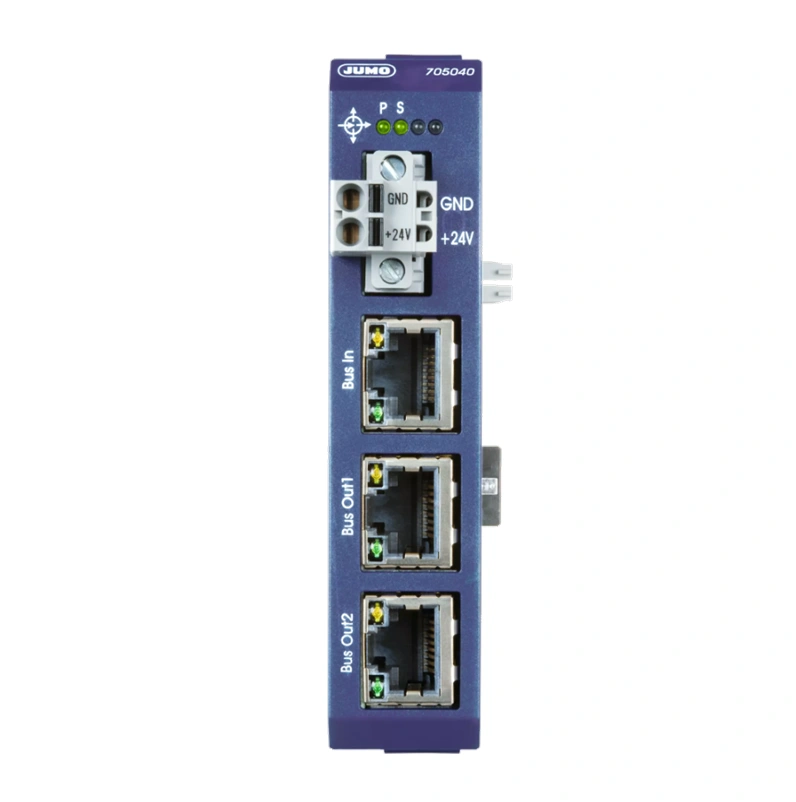

| Interfaces | 3 RJ45 on the front side: 1 Bus In (system bus), 2 Bus Out (Out 2 = system bus) |
| Special features | Decentralized arrangement of the modules of the automation system with a distance of up to 100 meters between multifunction panels, basic modules/router modules, addressing via rotary coding switch for special applications, galvanic isolation of the interfaces on the front, supply of operating voltage, fast wiring of operating voltage and system bus provided by simple module connection principle |
| Voltage supply | DC 24 V +25/-20 % |
| Housing | Plastic housing for DIN-rail mounting in the control cabinet |
| Dimensions (W × H × D) | 22.5 x 103.6 x 101.5 mm |
| Protection type | IP20 |
| Ambient temperature | -20 to +55 °C |
| Approvals | UL, DNV |
