Basic type: 403028

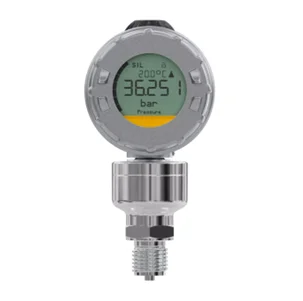

Process pressure transmitter with SIL/PL
The pressure transmitter reliably and accurately measures relative and absolute pressure of liquids, steam, and gases. It was developed for use in safety-related plants with Safety Integrity Level (SIL) according to DIN EN 61508. As a result, the transmitter is perfectly suited for safety measuring chains in the process industry and mechanical engineering.
| General technical data | |
|---|---|
| Measuring range | Up to 100 bar |
| Linearity | 0.05 % |
| Outputs | 4 to 20 mA, two-wire; HART® (4 configurable measured values) |
| Process connection | Thread |
| Materials in contact with the medium | Stainless steel (316L) |
| Approvals | SIL 2/SIL 3 according to DIN EN 61508, DIN EN 13849 (PL), and PED (PED 2014/68/EU in combination with JUMO safetyM STB/STW and transmitter power supply unit) |
| Special features | Highest precision; programmable; sensor made of stainless steel; stainless steel case; can be used within a safety chain, e.g. with JUMO safetyM STB/STW; comprehensive error diagnosis |
