Basic type: 402050

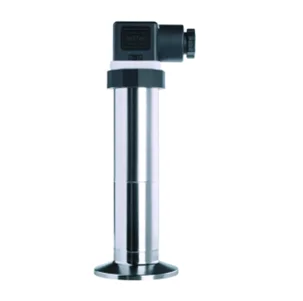

Pressure transmitter for increased medium temperatures
The product acquires either the relative or absolute pressure of liquid and gaseous media and transforms it into an electrical signal. The transmitter is made entirely of stainless steel and has a hygienic design. It is mainly used in the food and pharmaceutical industry.
| General technical data | |
|---|---|
| Medium temperature | -30 to +200 °C |
| Output | 4 to 20 mA two-wire, 0(4) to 20 mA three-wire, DC 0.5 to 4.5 V three-wire, DC 0 to 10 V three-wire, DC 1 to 5(6) V three-wire |
| Accuracy (linearity) | 0.2 to 0.5 % |
| Input | 1 to 60 bar relative, absolute |
| Process connection | Thread; hygienic connections; JUMO PEKA; diaphragm seal |
