Basic type: 405054

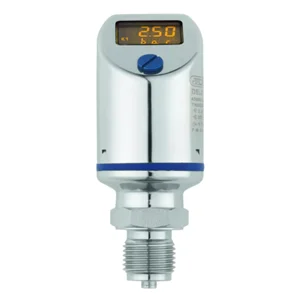

Precision pressure transmitter with switching contacts and display
The product is equipped with an electronic pressure switch with analog output and is specially designed for use on test benches, in laboratory areas, and for special machine construction. The default nominal values are between 160 and 600 bar.
| General technical data | |
|---|---|
| Output | 1x PNP switching output, 2x PNP switching output, 1x PNP switching output, and 1x analog output) (either: 0(4) to 20 mA, 0 to 10 V) |
| Accuracy (linearity) | 0.10 % |
| Input | 160 to 600 bar relative |
| Process connection | Thread |
| Special features | Programmable, switching output, measuring range scaling 1:4, selectable measuring unit, housing and process connection made of stainless steel |
| Medium temperature | -25 to +100 °C |
| Ambient temperature | -25 to +75 °C |
