Basic type: 401014

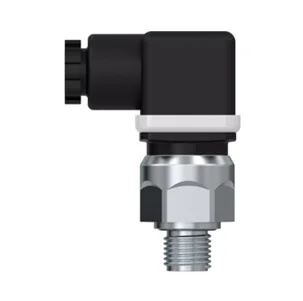

Pressure transmitter − Compressed Air
The JUMO MIDAS C12 CA is designed as a pressure transmitter especially for requirements in the field of compressor pressure measurement. The ceramic sensor detects relative pressures which provides a reliable and long-term stable signal.
| General technical data | |
|---|---|
| Measuring range | 0 to16 bar, 0 to10 bar, -1 to +15 bar, -1 to +9 bar |
| Process connection | G 1/4 DIN 3852-11 |
| Output | 4 ~ 20 mA, two wires |
| long-term stability | 0.3 % |
| Material Process Connection/Housing | Aluminum or stainless steel |
| Electrical connection | Plug connection DIN EN 175301-803, form A |
