Basic type: 403026

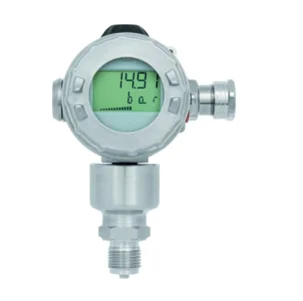

Process pressure transmitter with a flameproof enclosure
The product measures the relative and absolute pressure of gases, steam, and liquids and can be mounted up to zone 0. Front-flush process connections are available to meet hygiene requirements. The transmitter is used in such places as power plants
| General technical data | |
|---|---|
| Accuracy (linearity) | 0.05 % |
| Input | -1 to +600 bar relative pressure; 0 to 100 bar absolute pressure |
| Output | 4 to 20 mA, two-wire; HART® |
| Process connection | Thread; hygienic connections; JUMO PEKA; diaphragm seal |
| Medium temperature | -40 to +115 °C |
| Special features | Maximum precision; programmable; stainless steel sensor; stainless steel case |
