Basic type: 402051

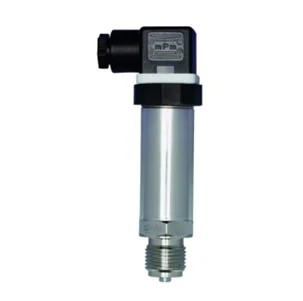

Pressure transmitter
The product acquires the relative pressure in dry, non-corrosive, and non-ionizing media and transforms it into an electrical signal. The basis is the piezoresistive measuring principle. The pressure transmitter is mainly used in lab technology and cleanroom technology.
| General technical data | |
|---|---|
| Input | 0 to 1.6 bar relative pressure |
| Accuracy (linearity) | 0.5 % |
| Medium temperature | -30 to +120 °C |
| Process connection | All screw connections that are standard in the industry |
| Output | 4 to 20 mA two-wire; DC 0.5 to 10 V three-wire |
