Basic type: 401011

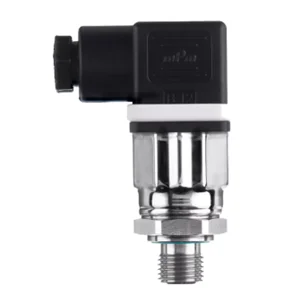

OEM pressure transmitter for low pressure applications
This pressure transmitter is completely welded and designed for use in harsh conditions. It can also be used for level measurement. The applied silicon sensor is extremely resilient.
| General technical data | |
|---|---|
| Input | -400 to +400 mbar relative pressure |
| Output | 4 to 20 mA two-wire; DC 0 to 10 V three-wire |
| Accuracy (linearity) | 0.3 to 0.35 % |
| Medium temperature | -20 to +100 °C |
| Process connection | All screw connections that are standard in the industry |
| Measuring system | Silicon sensor with stainless steel separating membrane (piezoresistive) |
