Basic type: 401021

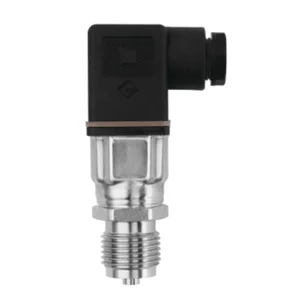

OEM pressure transmitter – maritime approved
Depending on customer requirements, the product is available as a relative or absolute pressure transmitter. It meets the requirements of Environmental Category C, EMC 2 according to DNV GL directives. The pressure transmitter is mainly used in shipbuilding.
| General technical data | |
|---|---|
| Accuracy (linearity) | 0.2 to 0.3 % |
| Input | -1 to +60 bar relative pressure; 0 to 25 bar absolute pressure |
| Process connection | All screw connections that are standard in the industry |
| Medium temperature | -40 to +125 °C |
| Output | 4 to 20 mA two-wire; DC 0.5 to 10 V three-wire |
| Measuring system | Silicon sensor with stainless steel separating membrane |
| Approvals | DNV, UL/UL(listed), H2ready |
