Basic type: 402058

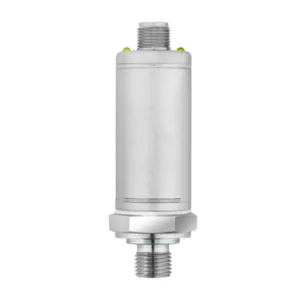

Pressure sensor with IO-Link
The pressure sensor measures relative and absolute pressure in liquids and gases. The device is equipped with an IO-Link interface according to specification 1.1. As a result, the pressure sensor is suitable for use in plant and mechanical engineering for connecting to automation systems.
| General technical data | |
|---|---|
| Measuring range | 400 mbar to 600 bar relative, absolute |
| Medium temperature | -25 to +125 °C |
| Ambient temperature | -40 to +85 °C |
| Output | IO-Link device V 1.1 (downward compatible to IO-Link V 1.0); 2 outputs for switch operation (SIO mode; SIO = standard IO) |
| Data transfer rate | COM 3 (230.4 kBaud) |
| Process connection | Market-based screw connections and hygienic process connections |
| Protection type | IP65, IP67 |
| Approval | cULus |
| Cycle time | 2 ms |
| Areas of application | Food industry, mechanical and plant engineering, packaging industry, process automation |
| Interface | IO-Link |
- Food industry
- mechanical and plant engineering
- packaging industry
- process automation
