Basic type: 401001

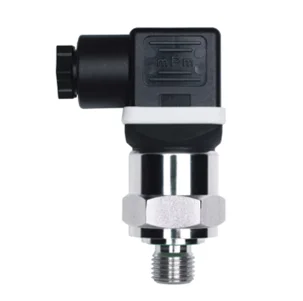

Pressure transmitter
This pressure transmitter acquires the relative pressure of liquid as well as gaseous media and transforms it into an electrical signal. It uses the thick film strain gauge measuring principle based on an aluminum oxide ceramic material (Al2O3). It is used in particular in mechanical and plant engineering.
| General technical data | |
|---|---|
| Process connection | All screw connections that are standard in the industry |
| Accuracy (linearity) | 0.5 % |
| Input | -1 to +100 bar relative pressure |
| Output | 4 to 20 mA two-wire; DC 0 to 10 V three-wire |
| Medium temperature | -20 to +125 °C |
| Measuring system | Thick film strain gauge measuring principle |
