Basic type: 402071

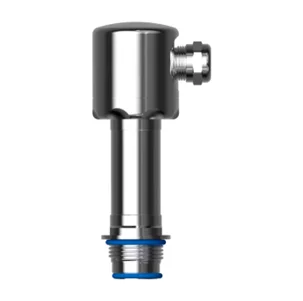

Hygienic pressure transmitter
The device is designed according to the hygienic requirements for precision measurement and a long lifecycle. It offers process reliability through a high degree of accuracy, even over a wide temperature range. The measuring ranges are between 0.1 and 100 bar rel. pressure or between 0.25 and 40 bar abs. pressure. The transmitter is used is the food and pharmaceutical industry.
- Hygienic process connections
- High process reliability
- Easy zero point correction using a magnet
- hygienic process connections
- FDA-compliant materials
| General technical data | |
|---|---|
| Measuring range | 0.1 to 100 bar rel; 0.25 to 40 bar abs |
| Medium temperature | -25 to +125 °C (maximum 140 °C for 1h/day) |
| Accuracy | Up to 0.25 % of the measuring span at 20 °C |
| Linearity | 0,1 % |
| Long-term stability | 0,1 % |
| Parts in contact with the product | 1.4404 and 1.4435 (316L) |
| Process connections | Hygienic process connections: Milk cone, tank connection; EHEDG-certified process connections: Clamp, VARIVENT®, JUMO PEKA; electrolytically polished process connections (optional). |
| Electrical connection | Attached cable, round plug M12 × 1, line socket, terminal head |
| Protection type | IP65 to IP69 (depending on the electrical connection) |
| Voltage supply | DC 24 V |
- Food and beverage industry
- CIP and SIP applications
- sterilizers and autoclaves
- pharmaceutical, medical and biotechnology, suitable for all hygienic pressure measurement applications.
