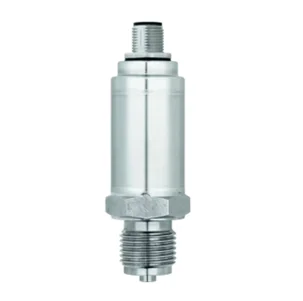

Basic type: 404710
Pressure transmitter for use in Ex areas
The product measures the relative and absolute pressure of gases, steam, and liquids on the basis of the piezoresistive measuring principle. It is completely welded and is particularly suitable for use in explosion-proof areas. Including oil, fuel, or gas plants.
| General technical data | |
|---|---|
| Measuring system | Silicon sensor with stainless steel separating membrane |
| Input | 0.25 to 100 bar relative; 0.6 to 25 bar absolute |
| Output | 4 to 20 mA, two-wire |
| Medium temperature | -40 to +85 °C |
| Accuracy (linearity) | 0.3 % |
| Process connection | All screw connections that are standard in the industry |
| Approvals | Ex (ATEX), DNV, H2ready |
