Basic type: 401009

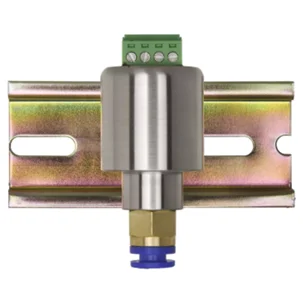

Pressure transmitter for control cabinet mounting
This pressure transmitter is the plant control cabinet variant of the basic JUMO MIDAS product. It acquires the relative pressure of liquid as well as gaseous media and transforms it into an electrical signal.
| General technical data | |
|---|---|
| Input | 0 to 16 bar relative pressure |
| Medium temperature | -15 to +60 °C |
| Accuracy (linearity) | 0.50 % |
| Output | 4 to 20 mA two-wire; 0 to 10 V three-wire |
| Process connection | Push-in fittings for pipe/tube |
| Measuring system | Thick film on ceramic bodies (piezoresistive) |
