Basic type: 401012

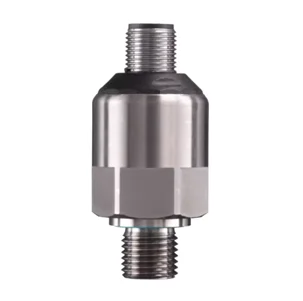

OEM pressure transmitter for seawater applications
This pressure transmitter features a hysteresis-free ceramic measuring cell and a titanium case. This protects it against organic acids and solutions containing chloride. It is used in particular in ship building and laboratory engineering.
| General technical data | |
|---|---|
| Input | -1 to +100 bar relative pressure |
| Output | 4 to 20 mA two-wire; DC 0 to 10 V three-wire |
| Medium temperature | -20 to +125 °C |
| Accuracy (linearity) | 0.25 to 0.3 % |
| Process connection | All screw connections that are standard in the industry |
| Measuring system | Thick film on ceramic bodies (piezoresistive) |
| Approvals | DNV |
