Basic type: 401050

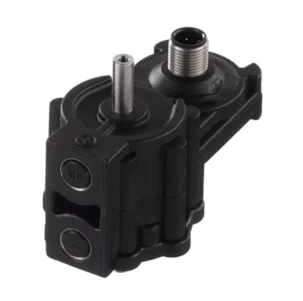

Differential pressure transmitter
The product acquires the differential pressure in liquid as well as gaseous media and transforms it into an analog output signal. The transmitter is mainly used for filter monitoring.
| General technical data | |
|---|---|
| Process connection | 2 x G 1/8 internal thread |
| Medium temperature | -15 to +100 °C |
| Input | 0 to 400 mbar – 0 to 16 bar differential pressure |
| Measuring system | Silicon sensor with stainless steel separating membrane (piezoresistive) |
| Special features | For liquid and gaseous media |
| Output | 4 to 20 mA two-wire; DC 0.5 to 10 V three-wire |
| Accuracy (linearity) | 0.4 to 0.6 % |
