| Place of Origin | Zhejiang China | Working Pressure | ≤1.0 Mpa | Connection | Tube or screw thread |
Model NO. | LZB – DK800 | Max Temp. | 120℃ | Fitting | Brass chrome plate or Stainless steel |
Medium | Water, Liquid, Air, Gas | Customized Support | OEM, ODM, OBM | Application | Water treatment |
Accuracy | ±2.5% | Brand Name | ZYIA | Sample | Available |

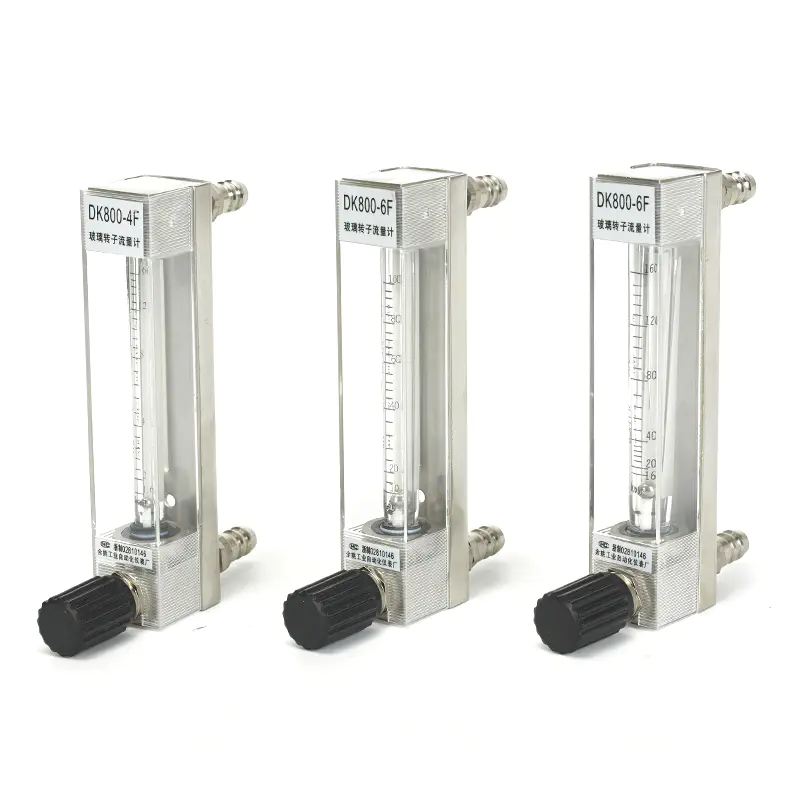

DK800 series glass rotameter, The compacted flowmeter is suitable for measuring and regulating small flowmeters. Smart design permits convenient replacement Of(tapered glass)tube and flouts with the flowmeter staying in the pipe run. It can be connected to either Hoses or metal pipes.
- Used for industrial furnaces and heat treatment.
- Light and handy structure, good looks, easy installation and maintenance.
- All flow meters can be equipped with limit switches.
Main Technical Parameters
| Model | Diameter(mm) | Range (L/h) | Accuracy(±%) | Media State | D | E | Outer Diameter Of Metal Pipe (mm) | ||
| Water 20 °C | Air101325Pa2°C | Working Temperature | Working Pressure | ||||||
| DK800-4DK800-4F | 4 | 0.25-2.5 | 0.5-50.8-81.6-164.406-60 | 2.5 | -20°C~+120°C | ≤1.0MPa | Ф11 | M10X1 | Ф6 |
| DK800-6DK800-6F | 6 | 0.5-51.2-122.5-254-406-6010-10016-160 | 10-10025-25050-50080-800100-1000180-1800240-2400300-3000350-3500430-4300 | ||||||
Note: Model with“F”: Corrosion Resistant Model
