| Place of Origin | Zhejiang China | Working Pressure | ≤0.6 Mpa | Connection | NPT or BSP |
| Model NO. | LZB – DK300 | Max Temp. | 80℃ | Base | PTFE |
| Medium | Water, Liquid, Air, Gas | Customized Support | OEM, ODM, OBM | Installation | Panel mounted |
| Accuracy | ±5% | Brand Name | ZYIA | Sample | Available |

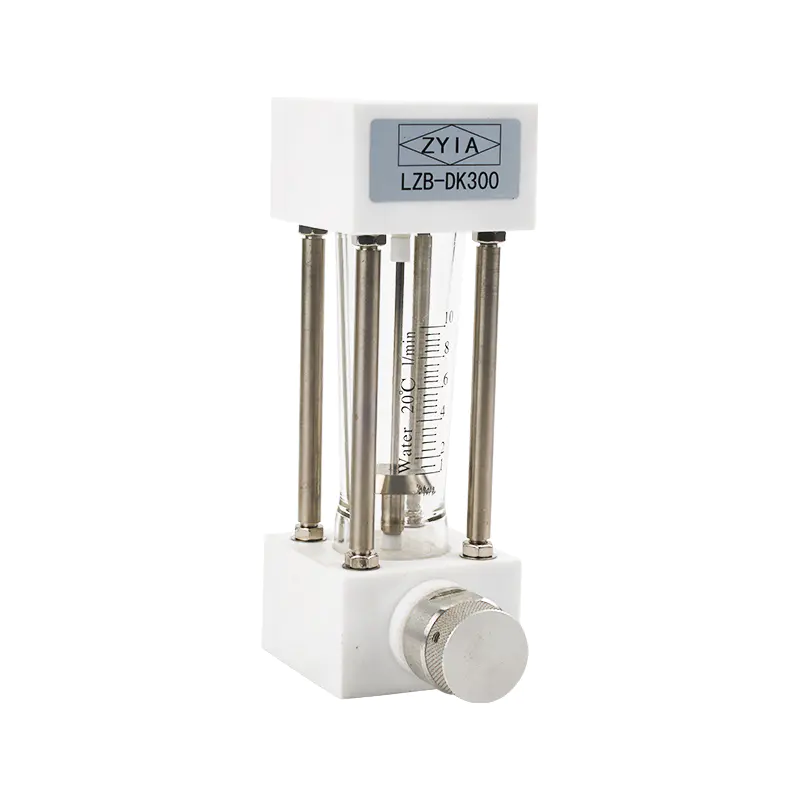

DK – 300 Series glass rotameter consists of a tapered glass tube, base plates on both ends, and four holding studs. Easy installation, thread assembled, and equipped with flow control valves.
It is suitable for small or large capacity flow measuring. Especially in semi-conductor chemical fluid etc.
Working Pressure: 0.6Mpa
Working Temperature:PVC(max 60℃) PTFE(max 80℃) SS304(max 120℃)
- Used for industrial furnaces and heat treatment.
- Light and handy structure, good looks, easy installation and maintenance.
- All flow meters can be equipped with limit switches.
Technical Parameters of LZB-DK300 Series
| Model | Range (L/min) | Thread | Accuracy | |
| Water 20℃ | Air101KPa 20℃ | |||
| DK-300 Or DK-300T | 1-10 | 40-400 | 1/2″BSP1/2″NPT3/4″BSP3/4″NPT | ±5% |
| 2-20 | 60-600 | |||
| 3-30 | 90-900 | |||
| 4-40 | 120-1200 | |||
| 5-50 | 150-1500 | 3/4″BSP3/4″NPT | ||
| 12-60 | 400-1800 | |||
