Basic type: 401006

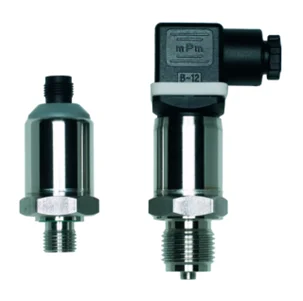

OEM pressure transmitter
This pressure transmitter acquires the relative and absolute pressure of gaseous and liquid media and transforms it into an electrical signal. One of the application areas in which it is used is aggressive media.
| General technical data | |
|---|---|
| Accuracy (linearity) | 0.30 % |
| Input | -1 to +1.6 bar relative pressure; 0 to 25 bar absolute pressure |
| Measuring system | Silicon sensor with stainless steel separating membrane |
| Medium temperature | -30 to +125 °C |
| Output | 4 to 20 mA two-wire; DC 0 to 10 V three-wire |
| Process connection | All screw connections that are standard in the industry |
