Models
-

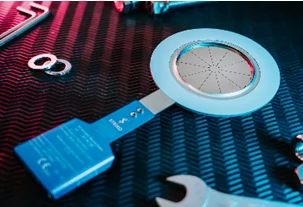

SF-M-TB STRIKO – Flat, Multilayered, Vacuum Supported with mediumsided PTFE-Liner
-
SF-MD-TB STRIKO – Flat, Multilayered, Double Acting (different pressures in over/under pressure direction)
Materials
Stainless steels, nickel, special materials such as tantalum, Inconel®, Hastelloy®,…
Nominal widths
DN 65 and DN 80 on stock, others on request
Burst pressures
from 0.025 bar (g) up to approx. 30 bar (g)
Working ratio
up to 90%
Burst tolerance
up to +/- 5%
Utilisation temperature range
-120 °C to +260 °C (PFA), +480 °C (metallic)
- Reliable pressure protection of tank container and tank wagons
- No fragmentation of metallic parts
- Flat design
- SF-M-TB vacuum-proof and with PTFE protective film on product side
- SF-MD-TB as ideal protection against overpressure and underpressure
- Fail-safe function due to centering collar
- Available in special materials such as nickel, Hastelloy®, Inconel® or tantalum
- Nominal sizes DN 65 and DN 80 for common bursting pressures and materials available from stock
- with 3D type plate as standard for reliable identification of the correct installation direction
- suitable for gases, vapors and liquids
- working ratio: up to 90%
- Tolerance: up to +/- 5%
