Models
-

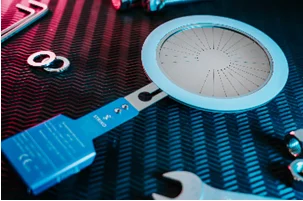

SF-M STRIKO – Flat, Multilayered
-
SF-MV STRIKO – Flat, Multilayered, Vacuum Supported
-
SF-MD STRIKO – Flat, Multilayered, Double Acting (different pressures in over/under pressure direction)
Materials
Stainless steels, nickel, tantal, inconel, hastelloy,…
Nominal widths
DN 15 – DN 600, other sizes on request
Burst pressures
from 0.025 bar (g) to appr. 30 bar (g)
Working ratio
80 %
Burst tolerance
min. +/- 5 %
Utilisation temperature range
-120 °C to +260 °C (PFA), +480°C (metallic)
Bursting disk holder
SHF and SHF Pro
Vacuum support
optional
Burst indicator
optionally installed on discharge side
- used with or without holder
- can be delivered with different burst pressures in overpressure and underpressure direction
- upon request vacuum resistant with integrated vacuum support
- insensitive design with simple handling
- working ratio: 80% by use of special materials
- torque insensitive
- equipped with a 3D name-plate for safe detection of correct direction of installation as a standard
- suitable for gasses, vapours and liquids
