Basic type: 404304
For non-aggressive gases

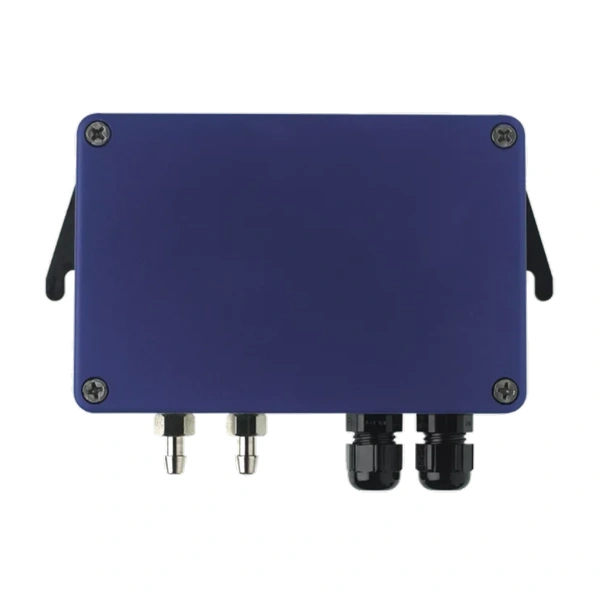

The type 4304 product acquires the negative pressure, overpressure, or differential pressure of non-aggressive gases. Upon request, the device can be equipped with an LCD display. The transmitter is mainly used in heating engineering, air-conditioning, and ventilation technology.
| General technical data | |
|---|---|
| Process connection | Thread; hose connection |
| Accuracy (linearity) | 1 % |
| Medium temperature | -10 to +50 °C |
| Output | 4 to 20 mA, two-wire; 0 to 20 mA, three-wire; DC 0 to 10 V, three-wire |
| Input | 0.50 to 1200 mbar DP, relative |
| Special features | With switching contacts; very small measuring ranges; adjustable; with LCD display as optional extra |
