| Place of Origin |
Zhejiang China |
Flout |
SS316 |
Connection |
Male Thread Female Thread |
|
Model NO. |
LZM -T Series |
Fitting |
1/4” female 3/4” male 1” male |
Body |
Acrylic |
|
Medium |
Gas, Air, Water |
Customized Support |
OEM, ODM, OBM |
Diameter |
DN15mm,20mm, 25mm |
|
Accuracy |
±4% |
Brand Name |
ZYIA |
Fitting |
ABS |
|
Working Pressure |
≤ 1 Mpa |
Max Temp. |
60℃ |
O-ring |
Silicon rubber |

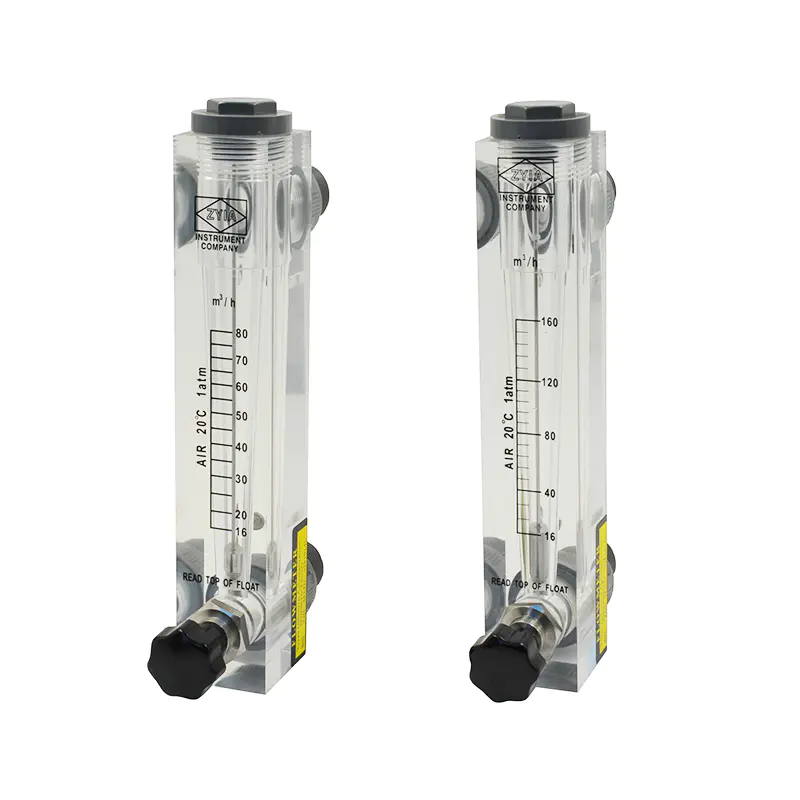

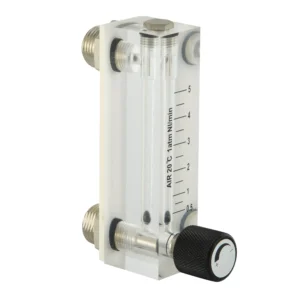

LZM – T Series is fitting for measuring and adjusting small flow rate, it has compact configuration .A specially designed fitting permit easy to read .
- Optional flow control needle-type adjustment valve.
- Durable and long service,adopt high quality material
- High definition scale,convenient and accurate reading
Technical Para meters of LZM-T Series Flow Meter
| Model | Range | Screw Thread | Accuracy | Size ( mm ) | ||||||||||
| GPM(Liquid) | LPM(Liquid) | Nm3/h(Gas) | A | B | c | D | E | F | G | H | ||||
| LZM-15T | 0.1-1 | 0.5-4 | 1-10 1.6-162.5-25 4-40 |
(M)1/2″BSPT | ±4% | 216 | 32 | 206 | 37 | 36 | 100 | 28 | 165 | |
| 0.2-2 | 0.8-8 | |||||||||||||
| 0.3-3 | 1-11 | |||||||||||||
| 0.5-5 | 2-18 | |||||||||||||
| LZM-20T | 2-10 | 8-40 | 2.5-25 6-6016-80 16-160 |
(M)3/4″BSPT | 233 | 39 | 220 | 44 | 42 | 100 | 37 | 165 | ||
| 2-16 | 8-60 | |||||||||||||
| 2-20 | 8-80 | |||||||||||||
| LZM-25T | 3-13 | 10-50 | (M)1″BSPT | 253 | 44 | 240 | 50 | 31 | 100 | 37 | 175 | |||
| 6-24 | 20-100 | |||||||||||||
| 10-35 | 30-130 | |||||||||||||
| 10-45 | 30-170 | |||||||||||||
■The material of the LZM-T series Flow Meter
| Fitting | Flout | O-ring |
| 1. ABS 2. PP√3. PVC 4. Brass 5. Brass chromeplate 6. SS | √1. SS | √1. Silicon rubber 2. Fluorin rubber |
Note: Mark with √, the material of the Flow Meter is the General Configuration.
■The outline size of LZM -T Series Flow Meter
| Model | Size(mm) | |||||||
| A | B | C | D | E | F | G | H | |
| LZM-15T | 216 | 32 | 206 | 37 | 36 | 100 | 28 | 165 |
| LZM-20T | 566 | 39 | 220 | 44 | 42 | 100 | 37 | 165 |
| LZM-25T | 253 | 44 | 240 | 50 | 31 | 100 | 37 | 175 |
