| Place of Origin | Zhejiang China | Flout | SS316 | Connection | Male Thread |
| Model NO. | LZM-J Series | Fitting | 3/4” male NPT/BSP
1/2” male NPT/BSP 1” male NPT/BSP |
Body | Acrylic |
| Medium | Gas, Air, Water | Customized Support | OEM, ODM, OBM | Diameter | DN15mm,20mm, 25mm |
| Accuracy | ±4% | Brand Name | ZYIA | Fitting | ABS |
| Working Pressure | ≤ 1 Mpa | Max Temp. | 60℃ | O-ring | Silicon rubber |

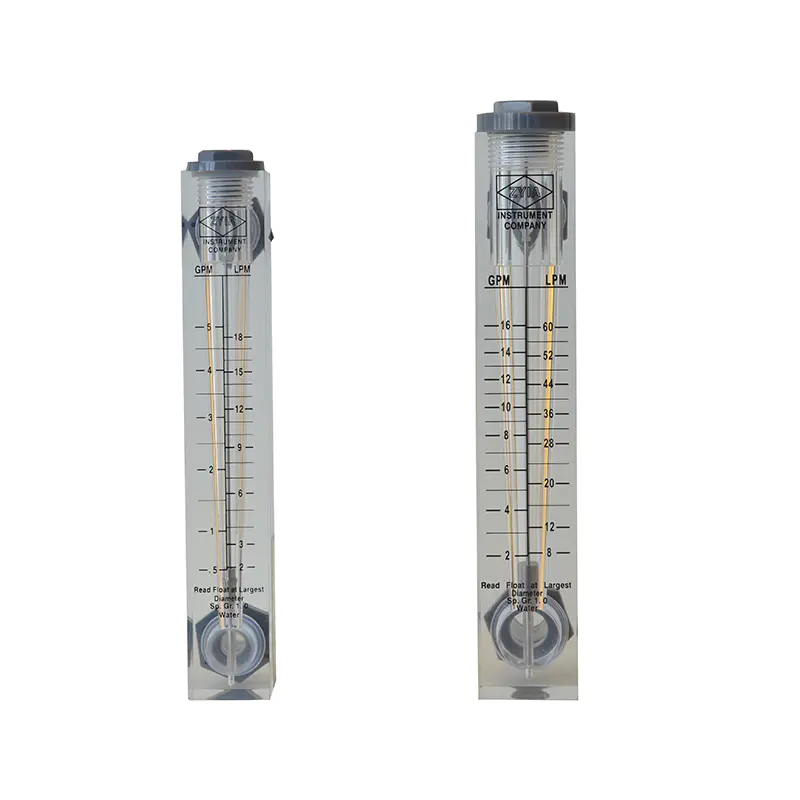

LZM–J series flowmeter has lengthen,which is installed on the panel,the customer will fix it by hexagonal nut the fitting.
The measure range of LZM Series is the same.
- Clear scale,transparent display,clear value.
- High accuracy adjustable button.Wear resistant,high quality stainless steel valve body,easy to
- use,convenient.Threading connection.
- Easy installation,easy operation(customized materials available).
Technical Parameters of LZM-J Series Panel Type Flow Meter
| Model | Range | ScrewThread | Accuracy | Size ( mm ) | |||||||||
| GPM(Liquid) | LPM(Liquid) | Nm3/h(Gas) | A | B | c | D | E | G | H | I | |||
| LZM-15J | 0.1-1 | 0.5-4 | 1-10 1.6-16 2.5-25 4-40 |
(M)1/2“NPT (M)1/2“BSP |
±4% | 216 | 32 | 206 | 37 | 33 | 1/2“ | 165 | 30 |
| 0.2-2 | 0.8-8 | ||||||||||||
| 0.3-3 | 1-11 | ||||||||||||
| 0.5-5 | 2-18 | ||||||||||||
| 1-7 | 2-28 | ||||||||||||
| 1.5-9 | 400-2000LPH | ||||||||||||
| LZM-20J | 2-10 | 8-40 | 2.5-25 6-6016-60 16-160 | (M)3/4“NPT (M) 3/4“BSP |
233 | 39 | 220 | 44 | 49 | 3/4“ | 165 | 32 | |
| 2-16 | 8-60 | ||||||||||||
| 2-20 | 8-80 | ||||||||||||
| LZM-25J | 1.5-15 | 6-60 | 20-20025 -250 | (M)1“NPT (M)1“BSP |
253 | 44 | 240 | 50 | 48 | 1“ | 175 | 4 | |
