| Place of Origin |
Zhejiang China |
Flout |
SS316 |
Connection |
Male Thread Female Thread |
|
Model NO. |
LZM -G Series |
Fitting |
3/4” female 1/2” male 1” male |
Body |
Acrylic |
|
Medium |
Gas, Air, Water |
Customized Support |
OEM, ODM, OBM |
Diameter |
DN15mm-DN75 |
|
Accuracy |
±4% |
Brand Name |
ZYIA |
Fitting |
ABS |
|
Working Pressure |
≤ 1 Mpa |
Max Temp. |
60℃ |
O-ring |
Silicon rubber |

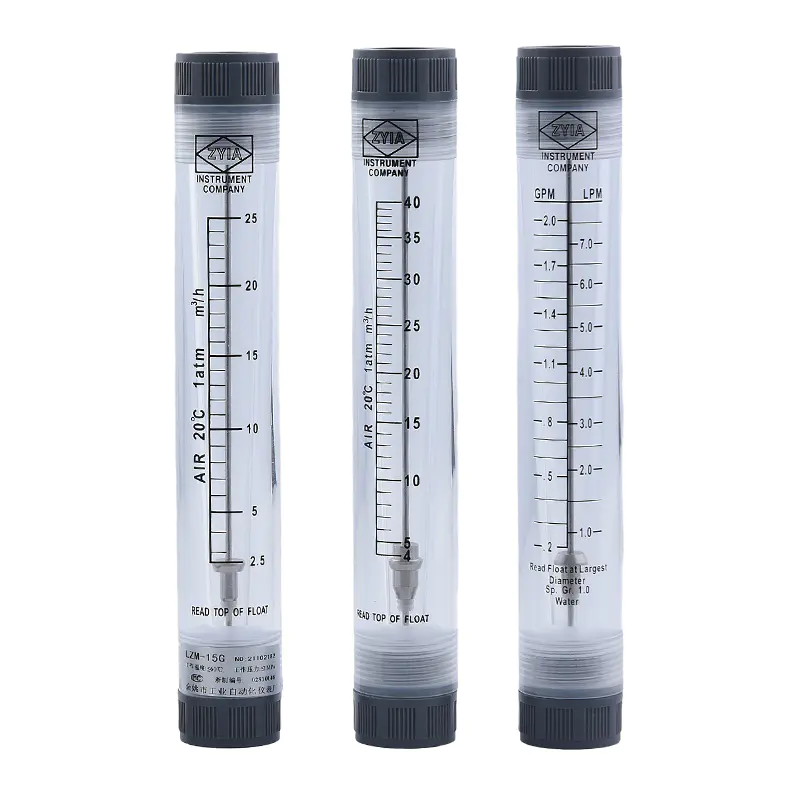

LZM – G real value in general purpose rotameters. LZM – G in-line flow meter also named Acrylic tube rotameter, acrylic tube flowmeter. SS or ABS or PVC or PP or Brass Connection.
- Tough machined acrylic meter body, highly polished to a clear finish.
- Direct reading permanent scale.
- White back reflector for easy reading.
- 316 stainless steel rod guided flouts.
- Acceptable in direct sunlight applications.
Technical Parameters of LZM-G Series Tube Type Flow Meter
| Model | Range | Screw Thread | Size ( mm ) | |||||
| GPM(Liquid) | LPM(Liquid) | Nm3/h(Gas) | Accuracy | A | B | c | ||
| LZM-10G | 2.5-25LPH | (M)1/2″BSP(M)1/2″NPT | ±4% | 187 | 130 | 22 | ||
| 2.45LPH | ||||||||
| 3.60LPH | ||||||||
| 10-100LPH | ||||||||
| 16-160LPH | ||||||||
| LZM-15GD | 4-40LPH | 0.3-3 | (F) 1/2″ BSP | 180 | 150 | 32 | ||
| 10-100LPH | ||||||||
| LZM-15GLZM-15GF | 0.1-1 | 0.5-4 | 0.8-8 1-101.6-16 2.5-254-40 |
210 | 180 | 32 | ||
| 0.2-2 | 1-7 | |||||||
| 0.5-5 | 1.9-18 | |||||||
| 1.5-9 | 400-2000LPH | |||||||
| LZM-20GLZM-20GF | 1-10 | 4-36 | 6-60 | (F) 3/4″BSP | 278 | 236 | 45 | |
| 100-1000LPH | ||||||||
| L2M-25GLZM-25GF | 1-10 | 4-36 | 6 60 10-100★15-140 16-16025-250 35-35080-400 |
(F) 1″BSP | 265 | 235 | 51 | |
| 1-15 | 5-60 | |||||||
| 2-20 | 10-70 | |||||||
| 5-30 | 20-110 | |||||||
| 5-40 | 20-150 | |||||||
| 5-45 | 20-170 | |||||||
| 20-60 | 80-220 | |||||||
■The material of LZM-G series Flow Meter
| Fitting | Flout | O-ring |
| 1. ABS 2. PP√3. PVC 4. Brass 5. Brass chromeplate 6. SS | √1. SS 2. Agata ball 3. PTFE | √1. Silicon rubber 2. Fluorin rubber 3. Butyl |
Note: Mark with √，the material of the Flow Meter is the General Configuration.
Note: For buyer’ s convenience, we design two constructions for this series of flowmeter, one is circular, and the other one is quadrate, their measure range is same, L ZM-G Circular tube type flowmeter LZM-GF Quadrate tube type flowmeter.
■The outline size of LZM – G Series Flow Meter
| Model | Size(mm) | ||
| A | B | C | |
| LZM-10G | 187 | 130 | 22 |
| LZM-15GD | 180 | 150 | 32 |
| LZM-15GLZM-15GF | 210 | 180 | 32 |
| LZM-20GLZM-20GF | 278 | 236 | 45 |
| LZM-25GLZM-25GF | 265 | 235 | 51 |
Note: For buyer s convenience, we design two constructions for this series of flowmeter, one is circular, and the other one is quadrate, their measure range is same, LZM-G Circular tube type flowmeter LZM-GF Quadrate tube type flowmeter
