| Place of Origin |
Zhejiang China |
Flout |
SS316 |
Connection |
Male Thread Female Thread |
|
Model NO. |
LZM-Z Series |
Fitting |
1/4” male 1/2” male 1” male |
Body |
Acrylic |
|
Medium |
Gas, Air, Water |
Customized Support |
OEM, ODM, OBM |
Diameter |
DN15mm,25mm |
|
Accuracy |
±4% |
Brand Name |
ZYIA |
Fitting |
ABS |
|
Working Pressure |
≤ 1 Mpa |
Max Temp. |
60℃ |
O-ring |
Silicon rubber |

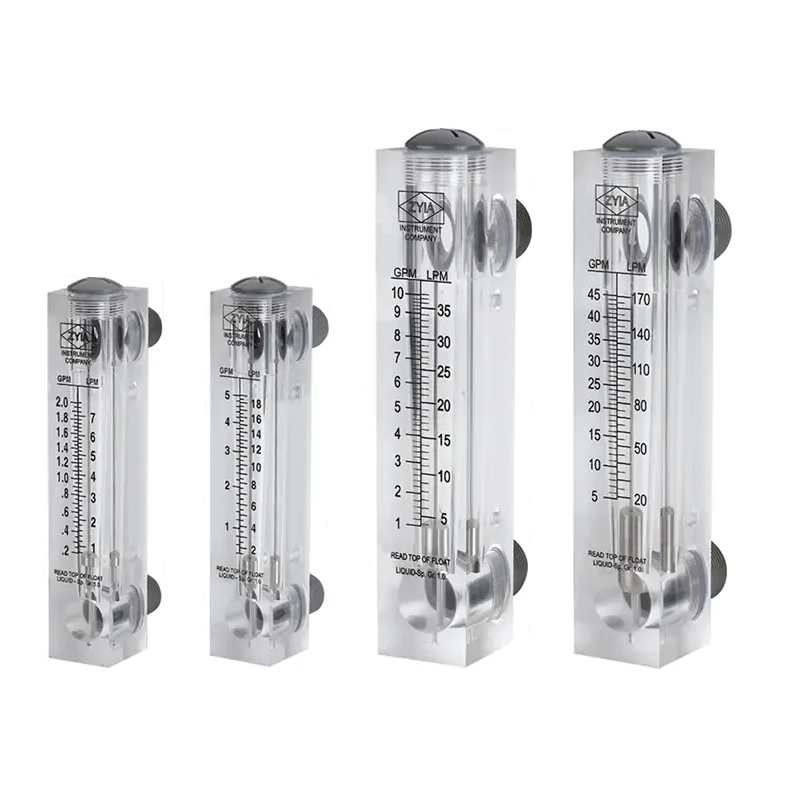

LZM–Z series flowmeter is suitable for both gas and liquid, it featured in beautiful look. With semicircle fittings and white colored type, and there are two screws can easily installed on panel.
- White back on the flow tube allows for better visibility of the flout increasing reading accuracy .
- Long operation life with durable construction.
- OEM logo print,customize size and ranges
- Calibrated for any kinds of gas
Technical Para meters of LZM-Z Series Flow Meter
|
Model |
Range |
Screw Thread |
Accuracy |
Size ( mm ) |
|||||||||
|
GPM(Liquid) |
LPM(Liquid) |
Nm3/h(Gas) |
A |
B |
c |
D |
E |
F |
G |
H |
|||
|
LZM-15ZA |
|
15-150LPH |
0.1-1 0.16-1.6 0.3-3 0.4-4 |
(M)1/2” BSPT |
±4% |
157 |
32 |
150 |
35 |
25 |
60 |
25 |
110 |
|
LZM-15Z |
|
10-100LPH 16-160LPH 25-250LPH |
0.04-0.4 0.1-1 0.16-1.6 0.3-3 0.25-2.5 0.4-4 0.6-6 0.8-8 1-10 1.6-16 1.8-18 2-20 2.5-25 3-30 4-40 |
(M) 1/2” BSPT |
175 |
32 |
168 |
35 |
25 |
76 |
25 |
127 |
|
|
0.03-0.35 |
0.1-1.4 |
||||||||||||
|
0.05-0.5 |
0.2-1.8 |
||||||||||||
|
0.1-1 |
0.5-4 |
||||||||||||
|
0.15-1.5 |
0.6-6 |
||||||||||||
|
0.2-2 |
1-7 |
||||||||||||
|
0.3-3 |
1-11 |
||||||||||||
|
0.5-5 |
2-18 |
||||||||||||
|
LZM-25Z |
1-10 |
5-35 |
2.5-15 2.5-25 4-40 6-60 10-100 20-100 16-160 25-250 30-300 35-350 |
(M) 1” BSPT |
234 |
45 |
226 |
46 |
33 |
100 |
37 |
160 |
|
|
1-15 |
5-50 |
||||||||||||
|
2-14 |
10-50 |
||||||||||||
|
2-20 |
10-70 |
||||||||||||
|
5-35 |
10-130 |
||||||||||||
|
5-40 |
10-150 |
||||||||||||
|
5-45 |
10-170 |
||||||||||||
|
|
0.3-2.1 m3/h 0.6-3 m3/h 0.6-4.2 m3/h |
||||||||||||
The material of LZM-Z Series Flow Meter
|
Fitting |
Flout |
O-ring |
|
|
1. ABS 2. PP √3. PVC |
4. Brass 5. Brass chromeplate 6. SS |
√1. SS |
√1. Silicon rubber 2. Fluorin rubber 3. Butyl |
Note: Mark with √, the material of the Flow Meter is the General Configuration.
The outline size of LZM – Z Series Flow Meter
|
Model |
Size(mm) |
|||||||
|
A |
B |
C |
D |
E |
F |
G |
H |
|
|
LZM-15ZA |
157 |
32 |
150 |
35 |
25 |
60 |
25 |
110 |
|
LZM-15Z |
175 |
32 |
168 |
35 |
25 |
76 |
25 |
127 |
|
LZM-25Z |
234 |
45 |
226 |
46 |
33 |
100 |
37 |
160 |
