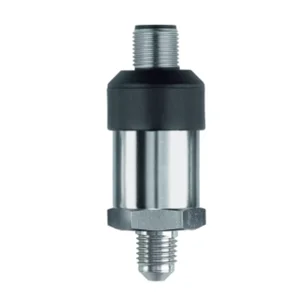

Basic type: 401002
OEM pressure transmitter for basic applications
This pressure transmitter is a basic product and acquires the relative pressure of liquid as well as gaseous media. The ceramic sensor has a long-term stability of under 0.2 %. It is used in particular in mechanical and plant engineering.
| General technical data | |
|---|---|
| Output | 4 to 20 mA two-wire; DC 0.5 to 4.5 V three-wire; DC 0 to 10 V three-wire; DC 1 to (5)6 V three-wire |
| Input | -1 to +60 bar relative pressure |
| Accuracy (linearity) | 0.25 % |
| Measuring system | Thick film on ceramic bodies (piezoresistive) |
| Medium temperature | -20 to +125 °C |
| Process connection | All screw connections that are standard in the industry |
