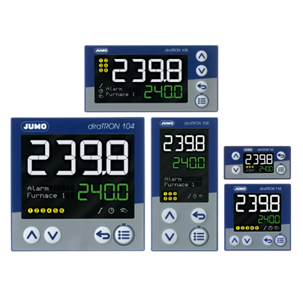

Basic type: 702110
- 1 control channel
- Display of individual texts
- Service counter
| General technical data | |
|---|---|
| Inputs | Inputs 1 × universal thermocouple, RTD temperature probe, 0(2) to 10 V, 0(4) to 20 mA; 2 × digital input |
| Outputs | 1 × logic output, up to 2 relays (3 A/230 V normally open contact); up to 4 optionally: relay, logic, PhotoMOS®, analog output |
| Display | 2 × 18-segment LCD, pixel matrix LCD |
| Formats | 132: 48 × 24 mm; 116: 48 × 48 mm; 108H: 48 × 96 mm; 108Q: 96 × 48 mm; 104: 96 × 96 mm |
| Interfaces | RS485 (Modbus-RTU), micro USB (configuration) |
