Basic type: 701080
Electronic thermostat with optional PID two-state controller function

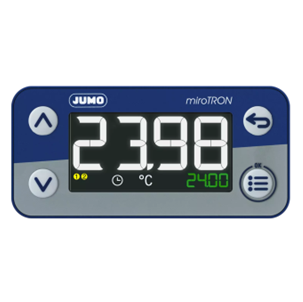

The JUMO miroTRON is a digital electronic thermostat for simple temperature control with optional PID two-point controller function and measurement inputs for RTD temperature probes or thermocouples and standard signals.
- Flexible in its application
- Intuitive operation in plain text
- Optional PID two-state controller function
- Intuitive startup and operation
- high degree of control quality due to optional PID autotuning, integrated timer function
- service and operating hours counter, cost-effective solution for simple control applications
| General technical data | |
|---|---|
| Measurement inputs | RTD temperature probes, thermocouples, or standard signals |
| Outputs | Up to 4 relays |
| Voltage supply | AC 230 V, +10/-15 %, 48 to 63 Hz, AC 115 V, +10/-15 %, 48 to 63 Hz, DC 12 to 24 V, +15/-15 % |
| Formats | 701080: (76 × 36 × 62) mm; 701081: (76 × 36 × 72) mm |
| Approval | cULus |
- Industrial ovens and furnaces
- Drying and curing equipment
- Heating systems and electric heaters
- Cooling and refrigeration systems
- Food and beverage processing
- Packaging and sealing machines
- Plastic processing and extrusion equipment
- Laboratory equipment and test chambers
- Water heating and hot water systems
- Environmental chambers
- Process tanks and vessels
- HVAC temperature control
- General industrial machinery requiring reliable on/off or PID temperature control
- OEM equipment integration where compact size and simple operation are required.
