Basic type: 202755

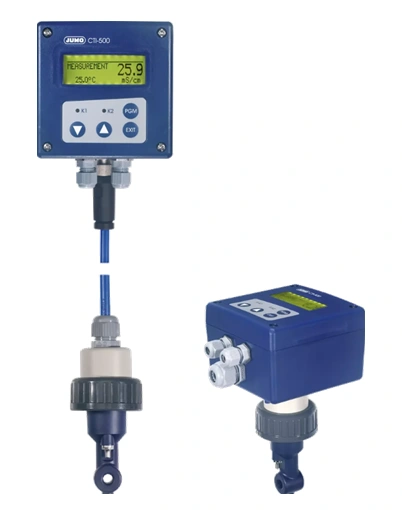

Inductive conductivity transmitter with switching contacts
The device is used for measuring and controlling the conductivity or the concentration of liquid media. The integrated temperature measurement enables precise and quick compensation. Additional functions allow the combined toggling of measuring range and temperature coefficient.
| General technical data | |
|---|---|
| Measurands | Inductive conductivity; concentration of NaOH, HNO3; temperature |
| Sensor material | PP or PVDF |
| Outputs | 2 outputs and 2 potential-free contacts |
| Mounting | Pipe mounting, wall mounting |
| Features | Operation via keypad and setup program; up to 4 measuring ranges and temperature coefficients can be activated; fast-response temperature sensor |
| Protection type | IP67 |
| Versions | Combined unit (transmitter and measuring cell in one device); split version (transmitter and measuring cell connected via cable) |
| Areas of application | Water and wastewater engineering; cooling tower monitoring (salt dilution control); rinsing baths (electroplating plants); air washers |
| Approvals | DNV, Metrological certificate |
