Basic type: 202922

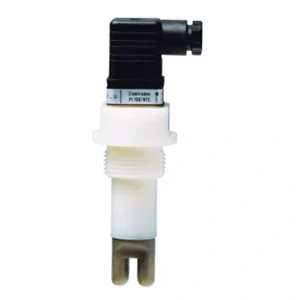

Conductive two-electrode conductivity sensor
The product is available in versions GT, EC, and GS. A special graphite is used in the GT version for water treatment. The main features of the stainless steel EC version are its very compact design type and the integrated Pt100 as a standard feature.
Compact design type, inexpensive version, for universal application
| General technical data | |
|---|---|
| Measuring ranges | 0.05 μS/cm to 100 mS/cm |
| Electrode material | JUMO BlackLine CR-GT: special graphite; JUMO BlackLine CR-EC: stainless steel (1.4571) or titanium; JUMO BlackLine CR-GS: platinum |
| Process connection | Screw head Pg 13.5, screw-in thread G 1/2A or 1/2″-14 NPT or plug head |
| Process pressure | Up to 6 bar |
| Operating temperature | -5 to +80 °C |
| Cell constant | K = 0.01; 0.1 or 1.0 |
Drinking water; ion exchangers and reverse osmosis plants; aquaristics
