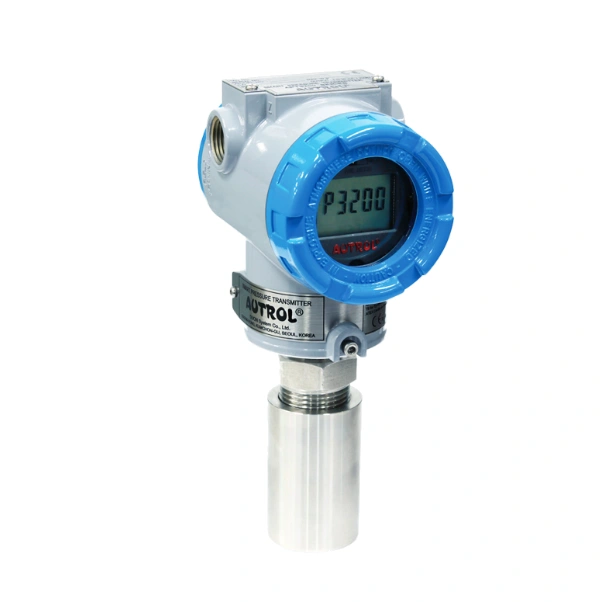

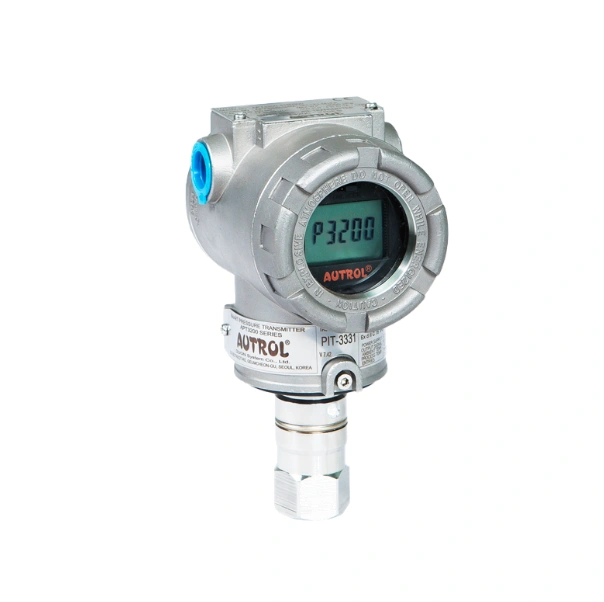

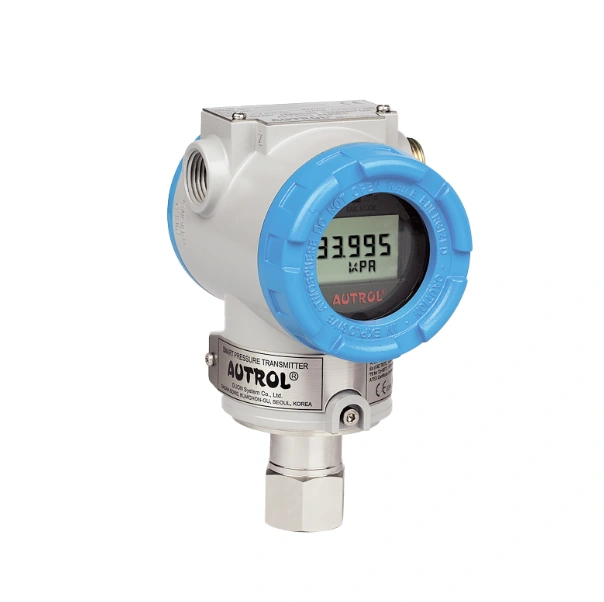

APT3200

Pressure transmitter

Autrol® APT3200 Smart Pressure Transmitter are microprocessor based Piezo-resistive Silicon
Chip pressure sensor. It measures the pressure, and generates a 4/20mA analog output or a HART
protocol digital output, transmitting signals to control systems such as DCS or PLC. The instrument
has an explosion proof housing, with exceptional accuracy and precision, together providing a reliable
system. With the capability of digital communication, the instrument is compatible with systems
requiring high reliability or remote communication.
The transmitter can communicate via HART protocol with a host control system, HHT (HART Hand
Held Terminal, PC Configurator or PDA Configurator. Accordingly a user may execute Change,
Configure, Test, or Calibration functions on each Parameter of the transmitter from the host via HART
communication.
A 250~550ohm loop resistance must be connected between the DC Power Supply and transmitter
to utilize HART communication.

Function

  • Type
  • Gauge/ Absolute(PIT), Level (LIT), High Static pressure
  • Certificate
  • SIL2 (TUV, FMEDA), Ex d, Ex ia, FM, ATEX, TR
    CU(EAC), INMETRO, CE, Rohs, BV, LR, KR, DNV, ABS,
    KCs, IP66/67, NEMA 4X
  • Feature
  • 4 to 20mA, HART, Loop PoweredAccuracy ± 0.075% (option ± 0.04%) of CS*

    3 lines LCD display, Self Diagnostic Function, External Buttons, DAC, Zero Trim, Eng mode

  • Application
  • Pressure, Level measurement for Oil & Gas(up & down stream), Liquid, Water, Maine & offshore, Vessel, Power, Chemical Plants and Refinary
