Flow Transmitter
จำหน่าย Flow Transmitter เครื่องวัดและส่งสัญญาณอัตราการไหล สำหรับน้ำ ของเหลว และแก๊ส แม่นยำสูง เหมาะกับโรงงานอุตสาหกรรม พร้อมคำแนะนำจากผู้เชี่ยวชาญ
Showing all 11 results
-
Converter
AVFM 6.1
Read moreArea Velocity Flow MeterThe Area Velocity Flow Measurement method is the most common method of all flow measurements. The AVFM 6.1 Area Velocity Flow Meter uses a submersible ultrasonic sensor measuring both the level and velocity of flowing liquid to calculate flow measurement in an open channel or pipe. The sensors are mounted either inside a pipe or at the bottom of a channel, and the sensor is built to resist fouling, corrosion, and abrasion. The AVFM 6.1 Area Velocity Flow Meter can be configured with the standard submerged velocity-level sensor or with submerged velocity in combination with a separate non-contacting ultrasonic level sensor, which is suitable for highly aerated fluids or those with a high concentration of suspended solids. -
Accessories
F014 – with pulse output
Read moreThe F014 is a local flow rate indicator / totalizer which displays the actual flow rate, total and accumulated total. A scaled pulse, related to the accumulated total is generated for re-transmitting the count on the display. Total can be reset to zero by pressing the CLEAR button twice. The accumulated total can register up to 11 digits and is backed-up in EEPROM memory every minute, just as the running total.On-screen engineering units are easily configured from a comprehensive selection. -
Accessories
F103 – with analog and pulse output
Read moreThe versatile F103 flow rate indicator / totalizer is your best choice for flow monitoring applications. It is perfect for new installations and to replace existing flow analyzers in the field. Its rugged construction, unique plug-and-play design and attractive pricing makes the F103 the perfect flow logger for liquid and gas flow measurement in Class I, Division 2 hazardous areas. It is the first F-Series with flow logging besides the various pulse and analog output signals. Even demanding applications are catered for with our base unit configuration.The display shows flow rate and totals. A current day total (daily total) and 15 historical (previous) day totals can be enabled in the setup menu to be shown at the main display. On-screen engineering units can easily be configured from a comprehensive menu. The flow/data logging is optional available and when chosen, it replaces the basic 15 historical (previous) day totals. Each log contains the flow rate, total, acc. total, time stamp and log number. The log can be downloaded as .csv file with the free software tool. -
Accessories
F110 – with modbus, analog and pulse output
Read moreThe F110 flow rate indicator / totalizer is the most popular model in our range of flow rate indicator / totalizers, complete with pulse and analog output signals. Even demanding applications are catered for with our base unit configuration. Displays total and flow rate simultaneously and additional accumulated total. On-screen engineering units are easily configured from a comprehensive selection. -
Doppler Flow Meter
FlowPulse Handheld Controller
Read morePortable Pipe Flow MonitoringThis HandHeld portable unit from Pulsar Measurement is designed for use with the FlowPulse pipe flow sensor, providing portable pipe flow monitoring and offering a toolset that allows programming of the non-contacting pipe flow sensor, monitoring, and data acquisition. The HandHeld controller connects to the pre-installed FlowPulse sensor or can operate as a self-contained kit, giving instant feedback on pipe flow via its color screen.The FlowPulse HandHeld controller is available as a stand-alone unit to use with existing FlowPulse sensors or can be purchased as a complete kit with a convenient carry case. The portable non-contacting, clamp-on, pipe flow monitoring system allows the operator to view traces and recorded data files - as well as loading and saving parameter files.Use the portable pipe flow monitoring system to complete system checks, monitor asset performance, or validate inline flow meter readings. Suitable for pump performance monitoring, industrial flow, irrigation flow, food and beverage manufacturers, pharmaceutical manufacturers, and much more! -
Flow Transmitter
JUMO multirange and differential pressure transmitter
Read moreJUMO multirange and differential pressure transmitterFor non-aggressive gasesThe product enables differential pressure measurement in non-aggressive gases. Permanent overpressure protects the process from dust penetration. The transmitter is mainly used in cleanrooms. -
Accessories
MV110
Read moreConverter with display for magnetic flow meterThe MV110 converter is mainly used in the water market, in HVAC and in industrial applications where performance and outputs or basic protocols are required.It offers the possibility to program it via the keyboard on the front or via a PC with a mini USB adapter, and can be coupled to the flanged sensors or wafers of the ISOMAG line.ISOIL ISOMAG MV110 Converter คอนเวอร์เตอร์สำหรับเครื่องวัดอัตราการไหลแบบแม่เหล็กไฟฟ้า (Electromagnetic Flow Meter) พร้อมจอ LCD Backlight รองรับ HART, Modbus, RS485 และ Data Logger เหมาะสำหรับงานน้ำ น้ำเสีย HVAC และโรงงานอุตสาหกรรม -
Accessories
MV210
Read moreMV210Converter for electromagnetic flow meterThe MV210 is the high-performance converter for electromagnetic flow meters of the ISOMAG line.It is designed for all those applications that require the highest accuracy and can be coupled to all the full bore or insertion sensors of the ISOMAG line.It is programmable via keyboard on the front or via PC with mini USB adapter.Available functions:low flow cutbidirectional measurementpeak cutting, empty pipe, alarm limit etc.Available accessories:rechargeable backup battery (guarantees measurement in the absence of power)4 GB data logger, Built-In Verifier (BIV) to evaluate the electrical characteristics of the sensor and converter over time.Product AttachmentsBROCHURE | DATASHEET -
Accessories

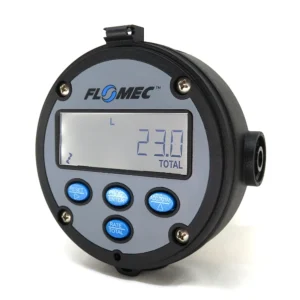

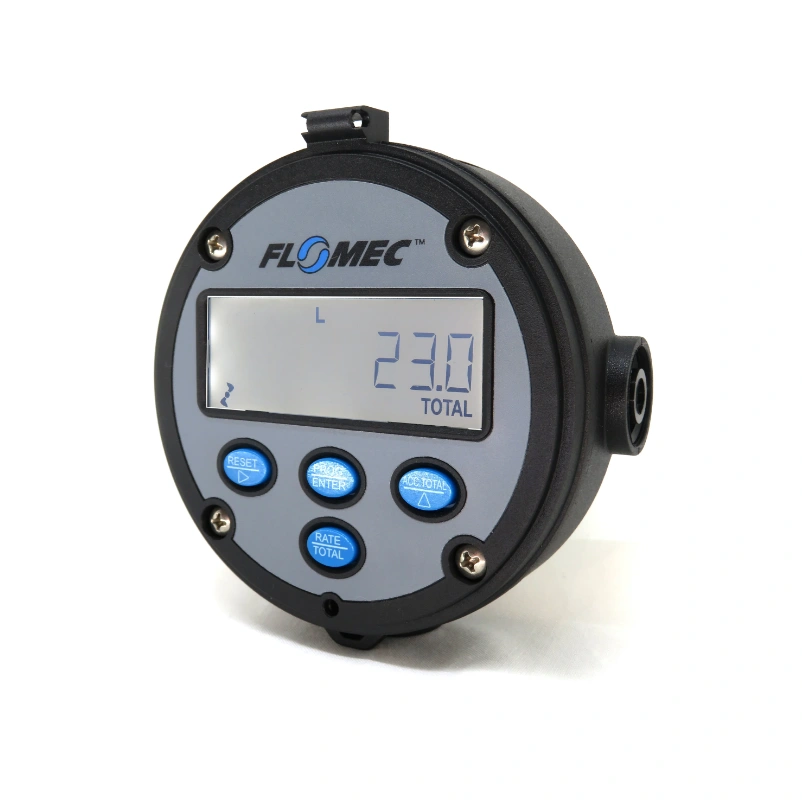

RT14 – Flow Rate Totaliser
Read moreThe FLOMEC® RT14 Rate Totaliser is the perfect display for users who require a more sophisticated local display that can also interface with external control or monitoring equipment. The RT14 features a backlit LCD, which provides optimal readability from a distance or in low-light conditions. Various output options are available to suit almost any flow measurement application, with a 4-20mA analogue signal for flowrate feedback and control, flow alarms for monitoring of critical processes, and a scaled pulse signal for remote monitoring of total volumes. The RT14 is housed in a robust glass-reinforced nylon enclosure with an IP66/67 rating, rubberised buttons, and a polycarbonate screen protector. The FLOMEC® RT14 is a fantastic product for almost any flow measurement application in both safe and hazardous areas.Control OutputsAn unscaled pulse output serves as an input signal amplifier, ideally suited for coil-type inputs from turbine or paddle wheel meters. The output can be transmitted over and can be configured for NPN/PNP with a wiring connection.ProgrammingSimple PIN-protected flowchart programming with English prompts guides you through the programming routine, greatly reducing the need to refer to the instruction manual. -
Accessories

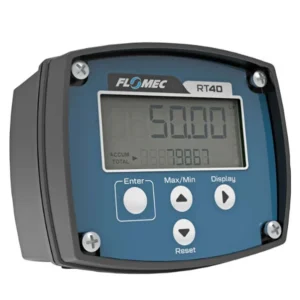

RT40 – Flow Rate Totaliser
Read moreThe FLOMEC® RT40 Flow Rate Totalizer is a perfect choice for users who require a simple display to read flow rate or totalised volume from a flow meter. The configurable digital output (pulse or alarm) also makes the RT40 well suited to use with a fuel management system, PLC, or a remote data logger.The RT40 is a cost-effective solution for economic operations, seamlessly integrating with FLOMEC Oval Gear, Turbine and Insertion meters equipped with a pulse output. This streamlined compatibility enhances data analysis at a glance, eliminating the necessity for intricate systems in simple installations. -
Converter
TTFM 6.1
Read moreTransit Time Flow MeterThe TTFM 6.1 Transit-Time Flow Meter is ideal for treated clean water, raw water, cooling water, chemicals, hydraulic oil, low-conductivity water, water/glycol solutions, and diesel and fuel oils. The unit works by measuring the time-of-flight difference for ultrasonic sound pulses transmitted from one transducer to another. The time between transmitted and received signals is measured by the flow meter. Mount the TTFM 6.1 Transit-Time Flow Meter ultrasonic transducers on the outside of a pipe and use the built-in 5-button keypad to enter the pipe material, outer diameter, wall thickness, and fluid type. The TTFM 6.1 will display the correct transducer separation distance and mounting method.
