Basic type: 608005

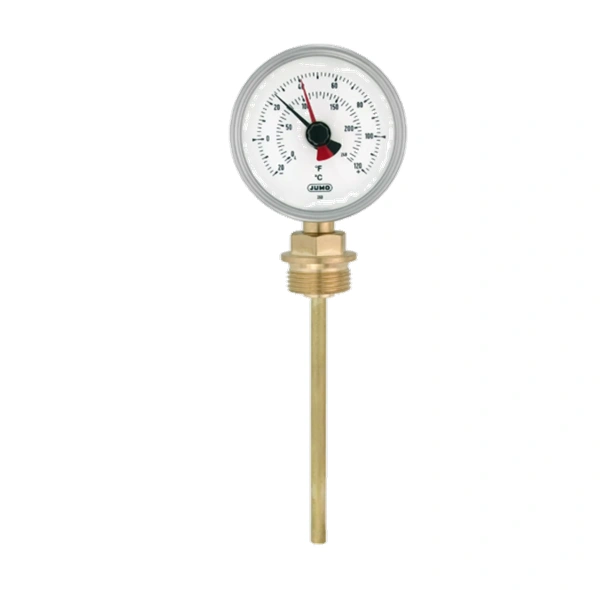

The measuring principle of the thermometer is based on a bimetal coil in a stainless steel or brass protection tube. If the temperature increases or falls, it turns and has a direct effect on the indicator via an axis. Versions of the 608005 products comply with DIN EN 13190, class 1.5.
| General technical data | |
|---|---|
| Measuring range | 0 to 120 °C |
| Display range | -20 to +120 °C |
| Features | Temperature indicator in stainless steel case with drag indicator |
| Accuracy class according to DIN EN 13190 | Class 1.5 |
| Capillary/rigid thermowell | 1″ screw connection, probe 150 mm long for mounting in transformer sleeve |
| Case size | 80 mm |
| Probe outlet | Vertical or horizontal |
| Area of application | Industrial transformers |
