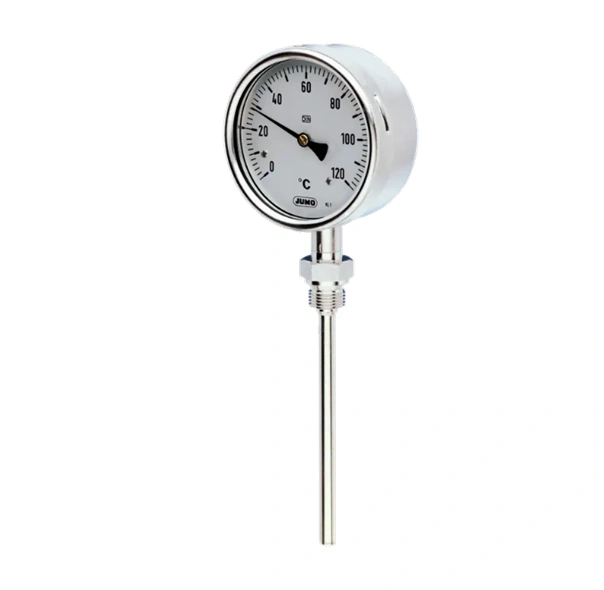

Basic type: 608003
The measuring principle of the thermometer is based on a bimetal coil in a stainless steel or brass protection tube. If the temperature increases or falls, it turns and has a direct effect on the indicator via an axis. Versions of the 608003 products comply with DIN EN 13190, class 1.
| General technical data | |
|---|---|
| Measuring range | -40 to +450 °C |
| Display range | -50 to +500 °C |
| Features | Stainless steel case |
| Capillary/rigid thermowell | Rigid thermowell |
| Accuracy class according to DIN EN 13190 | Class 1 |
| Approval | ATEX (608003) |
| Probe outlet | Vertical or horizontal |
| Case size | 60 mm, 80 mm, 100 mm, 160 mm |
| Areas of application | Mechanical engineering, process technology, gearbox construction, chemical industry, plant engineering |
