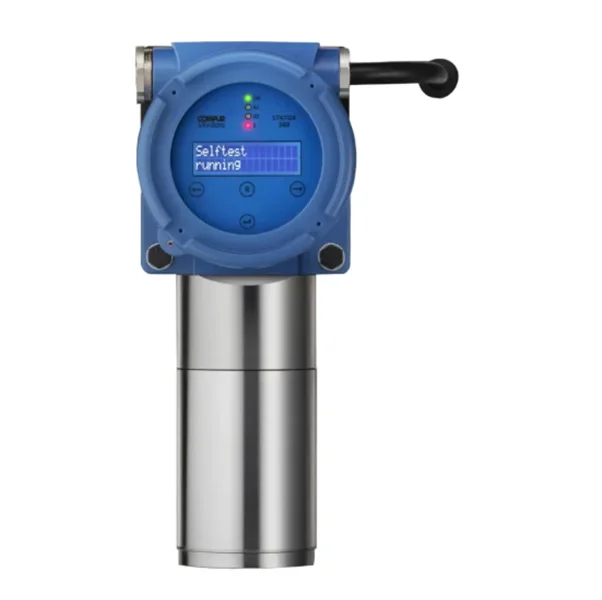

Statox 560

gas detector

  • The new generation of sensors provides high sensitivity, very fast response, low cross-sensitivity and plug-and-play technology.
  • The built – in gas generator produces the gas to be measured during the self-test. This way you can always be sure that the sensor is in good condition.
  • The Statox 560 is a 4 – 20 mA transmitter.
  • The entire electronics are housed in an Ex d enclosure with a window. The self-test takes place automatically once a day at a programmable time. However, it can also be triggered manually on site using a magnetic pen. The self-test can also be started from the control room. This is done with a separate button or with the Statox 503 Control Module.
  • A magnetic pen is used to set parameters and read out information such as calibration data, exposure, maintanance request etc. As the housing must not be opened, no hot work permit is required.
  • The sensor module includes the sensor, the generator cell and a micropump. It is designed in protection class Ex i. There is no hot work permit required to work on this module. Another option would be to replace the entire module. This way you can do all work on it in the comfortable environment of your workshop.
etc
