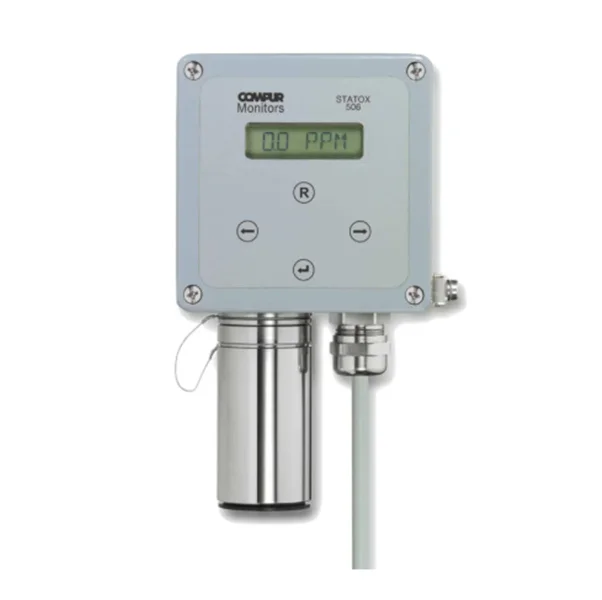

Statox 506 SIL2

Analytical Instrument, Gas Analysis, Gas Detector

detection of toxic gases and oxygen

Pure Safety: SIL2 Standard
The standard DIN EN 61508 makes operational safety measurable. This means that every sensor, every small mechanical and electronic component, and every software routine is examined for its probability of failure.

These key figures quantify the probability of failure on demand. They are so low in the Statox 506 that they are far below the requirements of the standard DIN EN 50420.

Simple operation: Plug & Play
The measuring head itself is gas-neutral. All technical parameters are stored in the F-RAM of the smart sensor. As soon as the sensor is plugged in, it communicates all important parameters to the sensor (gas type, measuring range, calibration data, date of manufacture, exposure history, etc.) The the system is ready to measure. This new generation of sensors also allows you to check when a calibration or proof test is required.

Even changing the sensor is child’s play: snap the sensor into the holder of the measuring head – done. This way, sensors located in places difficult to access, can conveniently be calibrated in the workshop and then be put back into the sensor head on site.

Categories: Analytical Instrument, Gas Analysis, Gas Detector Brand: COMPUR

Download Documents

📄Datasheet 📄Manual

Technical data measuring head

Sensor:	Statox 506 (Type 5376)
Measuring Principle:	Electrochemical
Operating Temperature:	–30 °C to +60 °C
Humidity Range:	0 – 99 % relative humidity (non-condensing)
Pressure Range:	900 – 1100 hPa
Accuracy at Calibration Value:	± 10 %
Operating Voltage:	28 VDC (12 – 28 VDC)
Connection Cable:	2-wire or 3-wire
Terminal Range for Connection Cable:	0.25 – 2.5 mm² (AWG 24 – 12)
Output Signal:	0 – 22 mA, maximum load 545 Ohm
Display:	8 digits, 14 segments
Dimensions (HxWxD):	180 x 111 x 81 mm
Weight:	Approx. 1200 g
Housing Material:	Aluminium die-cast, painted / Stainless steel
Ingress Protection:	IP66
EMC:	EN 50270
Explosion Protection:	Ex ib IIB T4 Gb
Application Range:	II 2G
Type Approval Certificate:	BVS 18 ATEX 066 X / N1
Operating Voltage Ui:	Up to 28 VDC
Supply Current Ii:	Up to 93 mA
Power Rating Pi:	650 mW
Internal Capacitance Ci:	24 nF
Internal Inductance Li:	Negligible
Functional Safety:	SIL 2 capable according to IEC 61508

Technical data sensors

Sensors	Measurement Range	Operating Temperature	Relative Humidity
Ammonia NH₃	0 – 150 ppm	-20 – +50 °C	15 – 95 %
Hydrogen Cyanide HCN	0 – 20 / 100 ppm	-20 – +50 °C	20 – 95 %
Chlorine Cl₂	0 – 1 / 5 / 100 ppm	-20 – +50 °C	20 – 95 %
Carbon Monoxide CO	0 – 300 ppm	-20 – +50 °C	20 – 90 %
Oxygen O₂	0 – 35 %	-20 – +50 °C	20 – 95 %
Hydrogen Sulfide H₂S	0 – 20 / 100 ppm	-20 – +50 °C	20 – 95 %
Ozone O₃	0 – 1 ppm	-20 – +50 °C	20 – 90 %
Nitrogen Dioxide NO₂	0 – 5 / 10 ppm	-20 – +50 °C	20 – 95 %
Hydrogen H₂	0 – 150 / 1000 ppm	-20 – +50 °C	20 – 90 %
Hydrogen Chloride HCl	0 – 50 / 100 ppm	-20 – +50 °C	20 – 95 %
Hydrazine N₂H₄	0 – 1 ppm	-20 – +50 °C	20 – 95 %
Phosgene COCl₂	0 – 0.5 / 1.0 / 20 / 100 ppm	-20 – +50 °C	20 – 95 %
Sulfur Dioxide SO₂	0 – 5 ppm	-20 – +50 °C	20 – 95 %
