Statox 501 LC IR and MC IR

Statox 501 LC IR and MC IR

Economical infrared technology for the detection of flammable gases and CO2

The Statox 501 IR low-cost family is the cost-effective solution when it comes to measuring flammable gases or monitoring the alarm threshold limit value for CO2 – especially when a catalytic sensor would not do the job.

For measurements in the LEL range these infrared measuring heads are a real economical alternative to catalytic sensors. Existing gas warning systems with catalytic sensors can be upgraded to infrared without great effort, as the sensors can be operated with the same voltage as catalytic sensors.

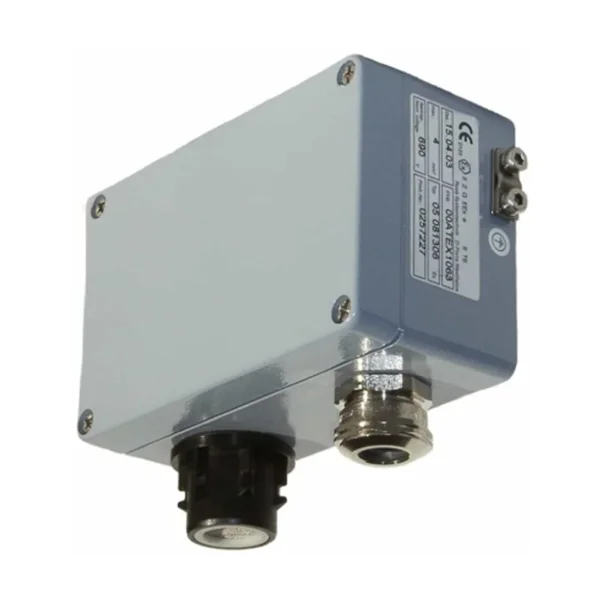

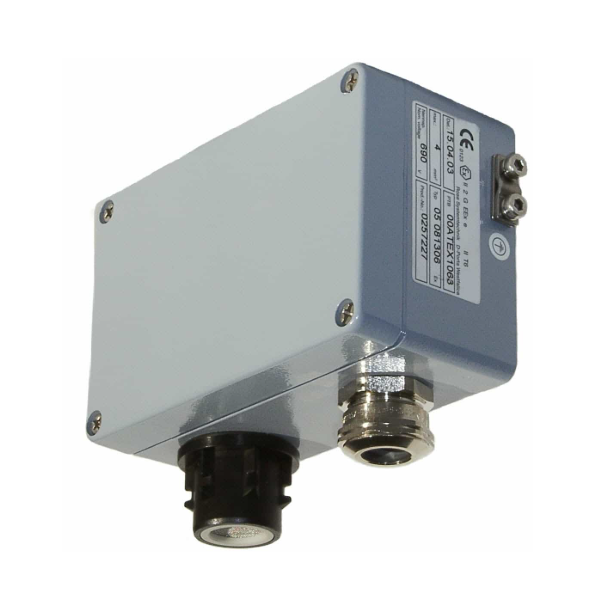

Both low-cost models consist of a junction box housing in EEx e design and a sensor in EEx d with integrated electronics.

The LC IR is best for Ex measurements, especially for methane. The MC IR is better for all other hydrocarbons.

Both infrared measuring heads are connected directly to the Statox 503 Control Module and are ready for immediate use.

PRODUCT ATTACHMENTS

DATASHEET (LC) | DATASHEET (MC) | MANUAL

ติดต่อขอรายละเอียดหรือสนใจสินค้า

  • Line : @intech2000
  • Email : intech@intech2000.com
  • Tel : 02-440-1853



Category: Brand:

TECHNICAL DATA

Measuring head: LC IR and LC IR CO2 MC IR
Measurable gases: Methane and CO2 Hydrocarbons
Measuring range: 0 – 100 % LEL
or 0 – 2 % or 0 – 5 % CO2		 0 – 100 % LEL
Measuring principle: Infrared absorption Infrared absorption
Sensor type: NDIR 2 – channel NDIR 2 – channel
Detection limit: 2 % LEL Methane or 0.02% CO2 2 % LEL
Response time: t90 < 30 s t90 < 30 s
Temperature range: -20 to +60 °C -20 to +60 °C
Humidity: 0 – 95 % r. H., non-condensing 0 – 95 % r. H., non-condensing
Pressure: 700 – 1300 hPa 700 – 1300 hPa
Supply voltage: 3.0 to 5.90 VDC 3.0 to 5.90 VDC
Current consumption: 80 mA 80 mA
Connection: 3-wire 3-wire
Operation: Statox 503 Control Module Statox 503 Control Module
Weight: 580 g 580 g
Display: – –
Output signal: Bridge voltage Bridge voltage
Protection class: IP 54 IP 54
Explosion protection: Ex db eb IIC T6 Gb Ex db eb IIC T6 Gb
Dimensions (HxWxD): 110 x 130 x 60 mm 110 x 130 x 60 mm
Max. cable length: 750 m with 3-wire
3000 m with 5-wire		 750 m with 3-wire
3000 m with 5-wire
