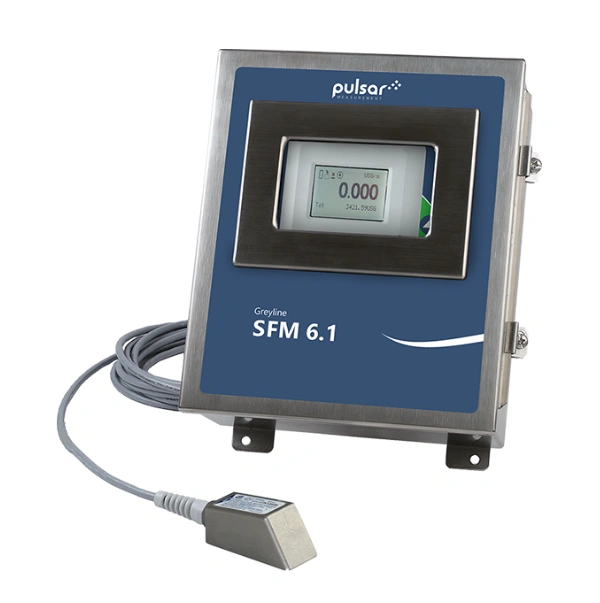

The SFM 6.1 is a specially designed Slurry Flow Meter designed for industrial and dredging flow applications. This non-contacting ultrasonic doppler flow meter is specifically designed for limestone slurry, fly ash slurry, gypsum slurry, and many others! The non-contacting ultrasonic sensor simply clamps to the outside of a wide variety of pipe materials and sends an ultrasonic signal into the pipe, measuring acoustic reflections off solids and gas bubbles that are suspended in the slurry.
With no need to shut down flow or interrupt processes, industrial and dredging operators can keep sites running to capacity and ensure that maximum flow rates are being reached. Configuration for this clamp on flow meter is easy with the user-friendly menu system and 26 million point data logger that allows operators to see flow charts and create dynamic reports on their process.
The SFM 6.1 Slurry Flow Meter can measure flow in either direction and gives a display of positive or negative values on the meter’s backlit, matrix display. The totalizer can be controlled to subtract reverse flow or to totalize forward flow only, and the 4-20mA output can be adjusted to a negative flow setting.
| General Specifications | |
|---|---|
| Spec name: | Description: |
| Flow Rate Range | ±0.038 m/s to 12.2 m/s (±0.125 ft/s to 40 ft/s) in most applications |
| Pipe Size | Any pipe ID from 12.7 mm to 4.6 m (0.5 in to 15 ft) |
| Accuracy | ±2% of reading or 30.5 mm/s (1.2 in/s). Requires solids or bubbles minimum size of 100 microns, minimum concentration 75 ppm. Repeatability: ±0.1%, Linearity ±0.5% |
| Display | White, back-lit matrix – displays flow rate, totalizer, relay states, 16-digit totalizer, operating mode, and calibration menu |
| Calibration | Built-in 5-key calibrator with English, French, or Spanish language selection |
| Power Input | 100-240 V AC 50/60 Hz, (see Options) 2.4 to 5.6 W depending on options |
| Outputs | Isolated 4-20mA (1 kΩ load max.) or 0-5 V DC (Field Selectable) |
| Control Relays | 2 Relays rated 5 A SPDT; programmable flow alarm and/or proportional pulse |

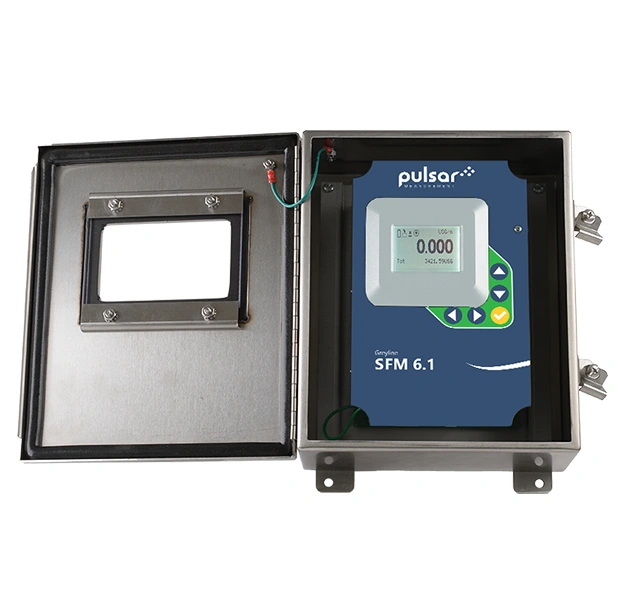

| Enclosure | NEMA4 Stainless steel with window |
| Operating Temperature (Electronics): | -40 °C to 150 °C (-40 °F to 300 °F) |
| Sensitivity | Adjustable. Damping: adjustable |
| Electrical Surge Protection | Sensor, 4-20mA output, and AC power input |
| Approximate Shipping Weight | 6.3 kg (14 lbs) |
| Sensor Specifications | |
|---|---|
| Spec name: | Description: |
| Model SE4 |
|
| Operating Temperature | -15 °C to 80 °C (5 °F to 175 °F) |
| Sensor Cable | 7.6 m (25 ft) shielded cable |
| Sensor Mounting | Stainless steel mounting kit for pipes 12.7 mm (0.5 in) ID or larger |
