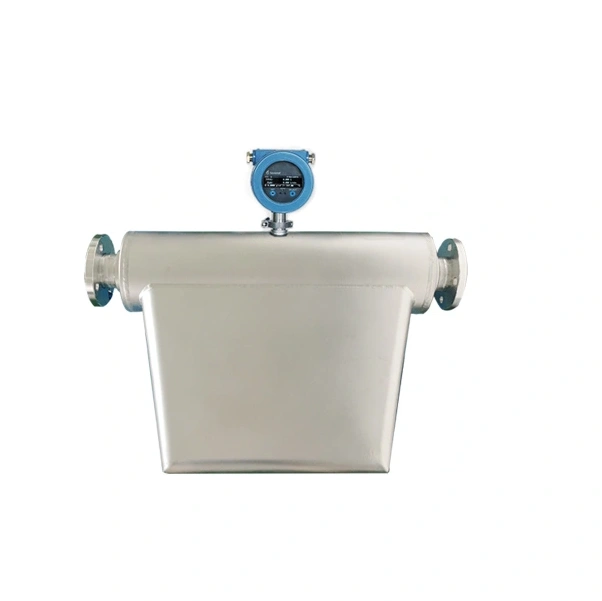

Model No.: MS-50
Place Of Origin: China
Brand Name: Sealand
Warranty: 2 Years
Wetted Parts: Stainless Steel 316L
MWP: 4MPa
Type: Coriolis Flow Meter
Voltage: AC85~265V/ DC24V
Max. Flow Rate: 60t/h
| Specifications of Coriolis Mass Flow Meter | |
| Model No. | MS-50 |
| Max. flow rate | 60t/h |
| Nominal diameter | 50mm (2 inch) |
| Liquid accuracy | ±0.1%/ ±0.15%/ ±0.2%/ ±0.5% |
| Gas accuracy | ±0.5% |
| MWP. | 4MPa |
| Density accuracy | 0.002g/cm3 |
| Temperature accuracy | ±1°C ± 0.5% of reading |
| Zero stability | 2.38kg/h |
| Repeatability | 0.05%/ 0.075%/ 0.1%/ 0.25% |
| Certificates | ISO |
| Ingress protection | IP65/ IP67 |
| Warranty | 2 years |
| Packing | 1set/ plywood case |
| Package size | 700*715*220mm |
| G.W. | 107kgs |
Sealand Coriolis Flow Meter family measures direct mass flow rates of liquids and gases in virtually all applications without special calibration. Safety, reliability, quality, and our innovative technologies enables us to provide a broad range of industry-specific products and services — and the expertise to put them to work for you.
- Alternative Energy
- Oil & Gas
- Chemical
- Food & Beverage
- Industrial Energy
- Life Sciences
- Marine
- Metals and Mining
- Power
- Pulp & Paper
- Refining
- Water & Wastewater
- Others
