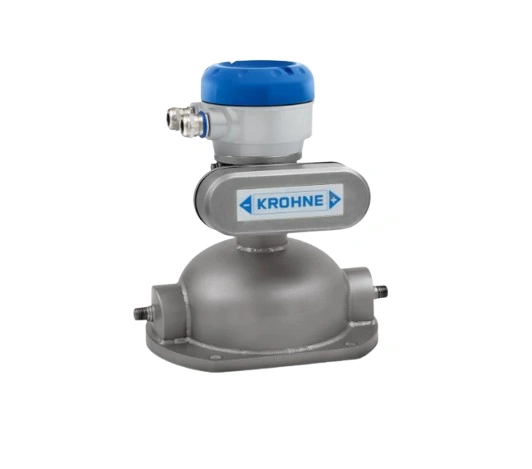

The OPTIMASS 3010 is a cost-effective Coriolis mass flowmeter for low flow and dosing applications with liquids and gases (from 0.3 kg/h or 0.01 lb/min upwards). The flowmeter features an integrated Modbus converter. This makes it the ideal solution for applications where a DCS or a PLC is already in use and extensive communication options and control functions are not necessary. By way of its Modbus interface the flowmeter integrates easily into existing controller systems. There is no need for a conventional signal converter. Purchase costs can be saved.
The OPTIMASS 3010 features a single Z-tube design which guarantees a low pressure drop across the meter. It is available with NPT connections, a range of flange connections as well as standard hygienic connections. The Coriolis device can also be used in hazardous areas.
- Single bent tube design
- No separate converter needed: Communication direct from meter
- Also suitable for pulsating flows
- Integrated temperature measurement
- 3 sizes in a single footprint
- Optional PED approved secondary pressure containment up to 30 barg / 435 psig
- Many options (heat tracing, purge port etc.)
- Easily drained and easy to clean
- Immunity to crosstalk: resistant to installation and process effects
General information
| Product type | Flowmeter |
| Product family name | OPTIMASS |
| Product positioning | For low flow and dosing applications |
| Measurement principle | Coriolis |
| Measured media | Liquids, Gases |
Operating conditions
| Process pressure | max. 300 barg/ 4351 psig |
| Process temperature | -40…+150°C/ -40…+302°F |
Materials
| Measuring tube | Austenitic stainless steel (1.4404/316L), Austenitic alloy (2.4602/Alloy 22) |
Process connections
| Flange connections | EN (1092-1): DN15 ASME (B 16.5): ½” JIS (B 2220): 15A |
| Thread connections | Female: ¼ NPT |
| Hygienic connections | Clamp (DIN 32676): DN10 Tri-Clamp: ½ |
Approvals/Standards
| Certificates/Approvals Ex | ATEX, IECEx, EAC Ex, INMETRO, FM |
Communication
| Digital outputs | Modbus RTU |
General
- Batching, dosing and filling applications with very low flow rates
- Applications where a PLC or DCS is already used for other functions
Oil and gas industry
- Natural gas and propane odorisation
- Chemical injection
Chemical and other process industries
- Concentration and density measurement of low volumes
- Batching to reactors
Pharmaceutical industry
- Fragrance dispensing and high precision coatings
- Dosing of ingredients
Food and beverage industry
- CO2 injection and dosing
Machinery and apparatus (OEM industry)
- Engine test beds (e.g. in the automotive industry)
Pulp and paper industry
- Additives, bleaches and colourants
