Installation
Before installation, the orifice plate must be kept clean and protected against corrosion and physical damage. It is also important that you pay careful attention to to the sharp edge of the plate. Once ensured that it is clean, install the orifice plate carefully such that the orifice bore aligns with the centre of the pipeline. Tap location varies depending on whether it is used for liquid, gas or steam. It is not supplied with any safety devices and must not be used for higher pressure, than stated on the name plate. The pipe system must therefore be equipped with a safety device. However, this type of primary element requires no special maintenance.
- Predictable pressure loss
- Simple construction
- Proven design
- Cost-effective

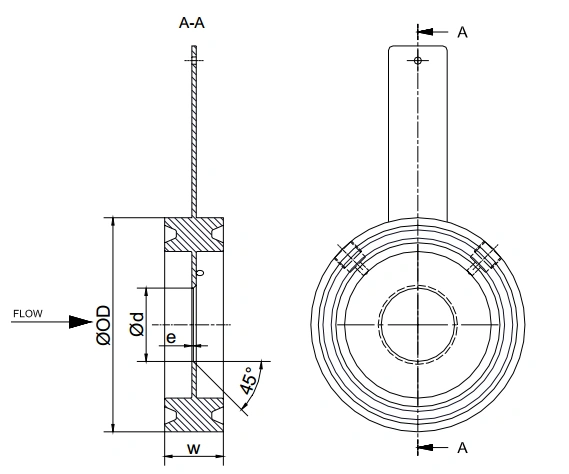

Construction
|
Design and calculation standards |
ISO 5167-2 2003, ASME MFC-3M, ANSI B 16.5, Shell Flow Meter Engineering Handbook |
|
Sizes |
DN 50 – 600, 2″ – 24″ |
|
Pressure rating |
600 – 2500 lbs RTJ |
|
Plate thickness |
3 – 8 mm |
|
β (d/D) |
0,3 < β < 0,75 |
|
Vent or drain hole |
On request |
|
Material |
AISI 316, AISI 304 22Cr Duplex, 16Mo3, 13CrMo4-5, other materials on request. |
|
Mounting style |
Between flanges with RTJ according to ANSI B 16.5 or to API |
|
Pressure taps |
Threaded: ½” NPT int. (standard) or ½” BSP. Flanged: ½” and ¾”, 600, 1500 and 2500 lbs RTJ. |
|
Tap Location |
At least 15° apart, depending on size and pressure rating |
|
Orifice plate shapes |
Square edge concentric as standard. See above illustrations for other shapes. |
|
Marking |
The orifice plate is marked with “+” and”-” and flow direction. |
Technical Data
|
Accuracy |
+/- 0,5 % for β < 0,6 and equal to β for β values above 0,6ove 0,6 |
|
Pressure loss |
Depending on β, for β equal to 0,6 : ca. 60 % of the differential pressure measuredntial pressure measured |
|
Limits for Reynolds No |
Re(D) > 5000 for 0,1< β < 0,56 and Re(D) > 16000 x β 2 for β > 0,56 according to ISO 5167-2 2003 2000 < Re < 108 according to ASME MFC-3M 108 according to ASME MFC-3M |
