Orifice Plate

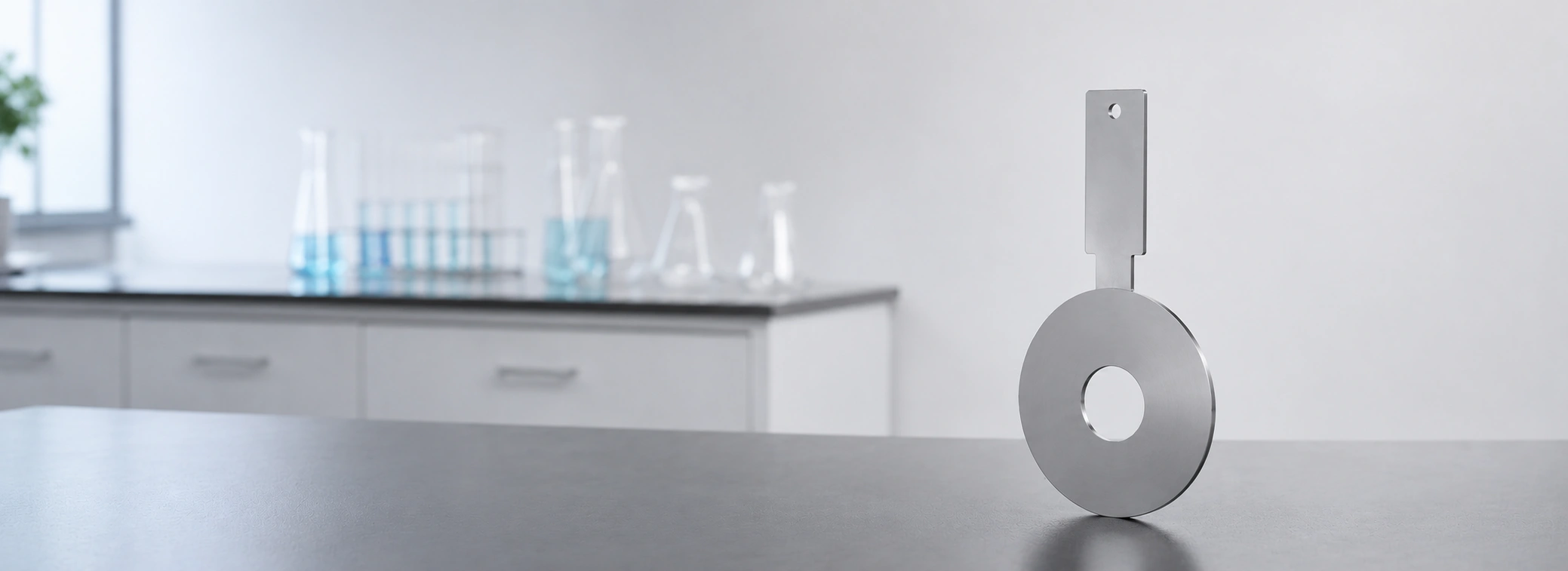

Orifice Plate เป็นอุปกรณ์วัดอัตราการไหล (Flow Meter) แบบ Differential Pressure ที่ได้รับความนิยมอย่างแพร่หลายในงานอุตสาหกรรม โดยอาศัยหลักการวัดความดันก่อนและหลังแผ่น Orifice เพื่อคำนวณอัตราการไหลของของเหลว ก๊าซ และไอน้ำ
Showing all 8 results
-
Differential Pressure
ISB/1
Read moreEMCO Orifice Plate Series ISB/1 for RF FlangesThe EMCO Orifice Plate is used as a primary element in flow measurement of liquid, gas and steam applications according to the differential pressure principle. According to this working principle, the orifice plate creates a flow restriction in the pipeline to allow measurement of the resulting pressure drop and flow rate. Our orifice plates have been tested and tried for over 50 years and measure up to the highest industry and compliance standards.The Orifice Plate Series ISB/1 is a single bore plate for mounting between raised face flanges. -
Differential Pressure
ISB/1 EP
Read moreEMCO Orifice Plate Series ISB/1 EP for RF FlangesThe EMCO Orifice Plate is used as a primary element in flow measurement of liquid, gas and steam applications based on the differential pressure principle. According to this working principle, the orifice plate creates a flow restriction in the pipeline to allow measurement of the resulting pressure drop and flow rate. Our orifice plates have been tested and tried for over 50 years and measure up to the highest industry and compliance standards.The Orifice Plate Series ISB/1 EP is especially designed for installations with limited space due to the flow conditioning effect created by the 5 hole design. The design therefore combines a traditional single bore orifice plate with a flow conditioner which can reduce the flow meter from 20 times inner pipe diameter to 5 times inner pipe diameter upstream in a straight pipe run. -
Differential Pressure
ISB/2
Read moreEMCO Orifice Plate Series ISB/2 with Integrated Unit for RTJ FlangesThe EMCO Orifice Plate is used as a primary element in flow measurement of liquid, gas and steam applications based on the differential pressure principle. According to this working principle, the orifice plate creates a flow restriction in the pipeline to allow measurement of the resulting pressure drop and flow rate. Our orifice plates have been tested and tried for over 50 years and measure up to the highest industry and compliance standards.The Orifice Plate Series ISB/2 is constructed with a an integrated unit for mounting between ring type joint (RTJ) flanges. -
Differential Pressure
MEF
Read moreEMCO Orifice Plate Series MEF with Single Pressure Tapping for Insertion Between FlangesThe EMCO Orifice Plate is used as a primary element in flow measurement of liquid, gas and steam applications based on the differential pressure principle. According to this working principle, the orifice plate creates a flow restriction in the pipeline to allow measurement of the resulting pressure drop and flow rate.The Orifice Plate Series MEF is constructed with a single pressure tapping for insertion between flanges. -
Differential Pressure
MEF/2
Read moreEMCO Orifice Plate Series MEF/2 with Single Pressure Tapping for Insertion between RTJ FlangesThe EMCO Orifice Plate is used as a primary element in flow measurement of liquid, gas and steam applications based on the differential pressure principle. According to this working principle, the orifice plate creates a flow restriction in the pipeline to allow measurement of the resulting pressure drop and flow rate.The Orifice Plate Series MEF/2 is constructed with a single pressure tapping for insertion between ring type joint (RTJ) flanges. -
Differential Pressure
MES
Read moreEMCO Orifice Plate Series MES with Single Pressure Tapping in All Welded ConstructionThe EMCO Orifice Plate is used as a primary element in flow measurement of liquid, gas and steam applications based on the differential pressure principle. According to this working principle, the orifice plate creates a flow restriction in the pipeline to allow measurement of the resulting pressure drop and flow rate. Our orifice plates have been tested and tried for over 50 years and measure up to the highest industry and compliance standards.The Orifice Plate Series MES is constructed with a single pressure tapping in all welded construction -
Differential Pressure
MRK
Read moreEMCO Orifice Plate Series MRK with Carrier Rings and Corner Pressure Tappings for Insertion Between FlangesThe EMCO Orifice Plate is used as a primary element in flow measurement of liquid, gas and steam applications based on the differential pressure principle. According to this working principle, the orifice plate creates a flow restriction in the pipeline to allow measurement of the resulting pressure drop and flow rate.The Orifice Plate Series MRK is constructed with carrier rings and corner pressure tappings for insertion between flanges. -
Differential Pressure
MSRF & MSRS
