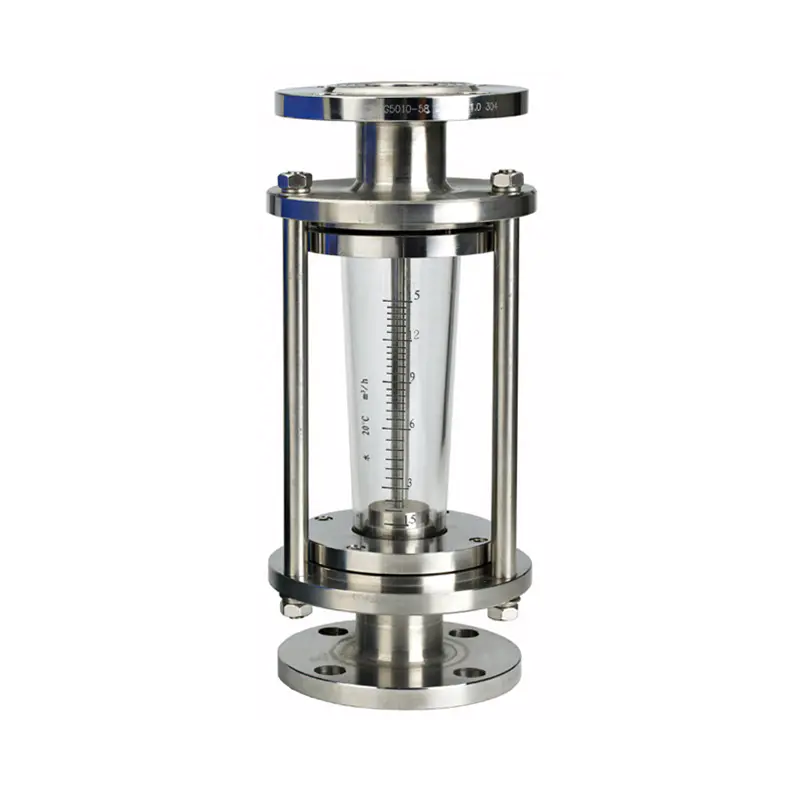

LZB-FA100 Series Sight Glass Gas Flow Meter -

Place of Origin	Zhejiang China	Working Pressure	≤1.0 Mpa	Connection	Flange
Model NO.	LZB – FA100	Max Temp.	120℃	Diameter	DN15-DN100mm
Medium	Water, LiquidAir, Gas	Customized Support	OEM, ODM, OBM	Flout	SS304
Accuracy	±3%	Brand Name	ZYIA	Sample	Available

LZB-FA100 Glass Rotator Flowmeter is highly sensitive and works in a wide range with low-pressure loss, besides other advantages e.g. easy to operate etc. It is usually used for low-pressure, high-temperature sheer liquid or gases without suspending particles and has been widely employed in various industries e.g. petroleum, chemicals, electronics, environmental protection, power supply and medicine etc.

Milk flow meter for variable area
High quality, Hot-sell, Factory price
The installation is easy and the milk flow meter is adjustable

Diameter(mm)

Range

Working Pressure(Mpa)

Water (l/h)

Air (NL/min)

30-300

60-600

80-800

10-100

20-200

25-250

≤0.8

90-900

120-1200

180-1800

20-200

30-300

50-500

180-1800

300-3000

480-4800

50-500

100-1000

150-1500

480-4800

600-6000

720-7200

200-2000

250-2500

300-3000

≤0.6

1-10m³/h

1.2-12m³/h

1.5-15m³/h

18-180Nm³/h

20-200Nm³/h

25-250Nm³/h

1.2-12m³/h

1.5-15m³/h

1.8-18m³/h

20-200Nm³/h

25-250Nm³/h

30-300Nm³/h

1.8-18m³/h

3-30m³/h

4-40m³/h

25-250Nm³/h

35-350Nm³/h

40-400Nm³/h

≤0.4

4-40m³/h

5-50m³/h

6-60m³/h

40-400Nm³/h

50-500Nm³/h

60-600Nm³/h

100

6-60m³/h

7-70m³/h

10-100m³/h

60-600Nm³/h

70-700Nm³/h

90-900Nm³/h

■LZB-FA100 Outline and Installation Dimensions(mm)

Model	FA100-15	FA100-20	FA100-25	FA100-32	FA100-40	FA100-50	FA100-65	FA100-80	FA100-100
L	260	340	340	340	340	340	390	390	410
H(Glass tube length)	150	200	200	200	200	200	250	250	250
D1	95	105	115	135	145	160	180	185	205
D2	65	75	85	100	110	125	145	150	170
F	4-φ14	4-φ14	4-φ14	4-φ18	4-φ18	4-φ18	4-φ18	4-φ18	4-φ18
